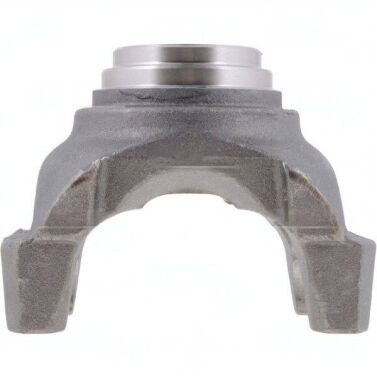

6-4-4601 – End Yoke – 1710 Series – 2.350″ Splines Dia – 3.312″ Hub Dia
$134.55
1 in stock
11 People watching this product now!
Description
End yoke 6-4-4601, 1710. Specs: 2.350″ x 16 spline | 3.312″ hub dia | 4.938″ CJ-to-end | 2.750″ bore. Spline count and series must match.
Full Description
Spline count and diameter aren't suggestions -- they're the spec. The 6-4-4601 end yoke is bored and splined to one shaft dimension. Match it exactly.
6-4-4601 End Yoke -- 1710 Series Spline & Fitment
The 1710 series is the standard for Class 6-7 vocational trucks and heavy industrial drivetrains. The 6-4-4601 end yoke specs: 2.350" x 16 spline | 3.312" hub dia | 4.938" CJ-to-end | 2.750" bore. Strap/bearing-plate retention -- more secure under high torque than snap ring styles.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1710 -- Class 6-7 vocational trucks and heavy industrial drivetrains
- Spline: 2.350" x 16 -- must match axle/T-case shaft exactly
- Hub dia: 3.312" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.938" -- affects driveshaft working length and angle
- Bore: 2.750" -- confirm against shaft OD
- Retention: BP -- Strap/bearing-plate retention -- more secure under high torque than snap ring styles.
Specifications
- SKU: 6-4-4601
- Brand: UDS
- Series: 1710
- Spline Dia: 2.350"
- Spline Count: 16
- Hub Dia: 3.312"
- CJ to End: 4.938"
- Through Hole: 2.750"
- Style: BP
Additional information
| Cj to end | 4.938 |
|---|---|
| Hub dia | 3.312 |
| Partn number | 6-4-4601 |
| Series | 1710 |
| Splines count | 16 |
| Splines dia | 2.350" |
| Style | BP |
| Through hole | 2.750" |
