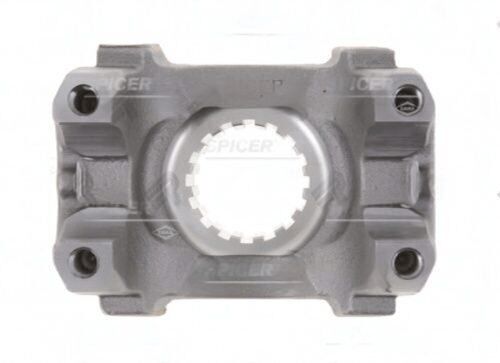

6-4-4601-1 – End Yoke – 1710 Series – 2.35″ Splines dia – 3.312″ Hub Dia
$156.10
1 in stock
14 People watching this product now!
Description
6-4-4601-1 end yoke, 1710 series. 2.35 x 16 spline | 3.312″ hub dia | 4.938″ CJ-to-end | 2.750″ bore. Splined bore — verify count and diameter before ordering.
Full Description
End yoke failures are usually visible: worn splines, cracked ears, or corrosion at the cap bores. The 6-4-4601-1 is the correct 1710 series replacement.
6-4-4601-1 End Yoke Specifications & Series
The 6-4-4601-1 end yoke -- 2.35 x 16 spline | 3.312" hub dia | 4.938" CJ-to-end | 2.750" bore.
The 1710 series is the standard for Class 6-7 vocational trucks and heavy industrial drivetrains. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1710 -- Class 6-7 vocational trucks and heavy industrial drivetrains
- Spline: 2.35 x 16 -- must match axle/T-case shaft exactly
- Hub dia: 3.312" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.938" -- affects driveshaft working length and angle
- Bore: 2.750" -- confirm against shaft OD
- Retention: HR -- verify against your yoke configuration
Specifications
- SKU: 6-4-4601-1
- Brand: UDS
- Series: 1710
- Spline Dia: 2.35
- Spline Count: 16
- Hub Dia: 3.312"
- CJ to End: 4.938"
- Through Hole: 2.750"
- Style: HR
Additional information
| Cj to end | 4.938 |
|---|---|
| Hub dia | 3.312 |
| Partn number | 6-4-4601-1 |
| Series | 1710 |
| Splines count | 16 |
| Splines dia | 2.35 |
| Style | HR |
| Through hole | 2.750" |
