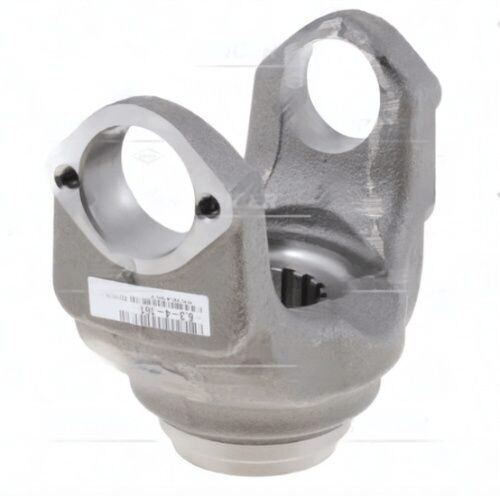

6.3-4-161 – End Yoke – 1760 Series – 2.350″ Splines Dia – 2.875″ Hub Dia
$135.77
1 in stock
18 People watching this product now!
Description
6.3-4-161 end yoke, 1760 series. 2.350″ x 16 spline | 2.875″ hub dia | 5.500″” CJ-to-end | 2.750″ bore. Splined bore — verify count and diameter before ordering.
Full Description
Spline count and diameter aren't suggestions -- they're the spec. The 6.3-4-161 end yoke is bored and splined to one shaft dimension. Match it exactly.
6.3-4-161 End Yoke Specifications & Series
The 1760 series is the standard for Dana 80 rear axle trucks -- heaviest factory Dana rear axle produced. Specs for the 6.3-4-161 end yoke -- 2.350" x 16 spline | 2.875" hub dia | 5.500"" CJ-to-end | 2.750" bore.
Strap/bearing-plate retention -- more secure under high torque than snap ring styles. Spline engagement must be full depth -- a yoke that only partially engages the shaft will spin loose under load.
Key Features
- Series: 1760 -- Dana 80 rear axle trucks -- heaviest factory Dana rear axle produced
- Spline: 2.350" x 16 -- must match axle/T-case shaft exactly
- Hub dia: 2.875" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 5.500"" -- affects driveshaft working length and angle
- Bore: 2.750" -- confirm against shaft OD
- Retention: BP -- Strap/bearing-plate retention -- more secure under high torque than snap ring styles.
Specifications
- SKU: 6.3-4-161
- Brand: UDS
- Series: 1760
- Spline Dia: 2.350"
- Spline Count: 16
- Hub Dia: 2.875"
- CJ to End: 5.500""
- Through Hole: 2.750"
- Style: BP
Additional information
| Cj to end | 5.500" |
|---|---|
| Hub dia | 2.875 |
| Partn number | 6.3-4-161 |
| Series | 1760 |
| Splines count | 16 |
| Splines dia | 2.350" |
| Style | BP |
| Through hole | 2.750" |
