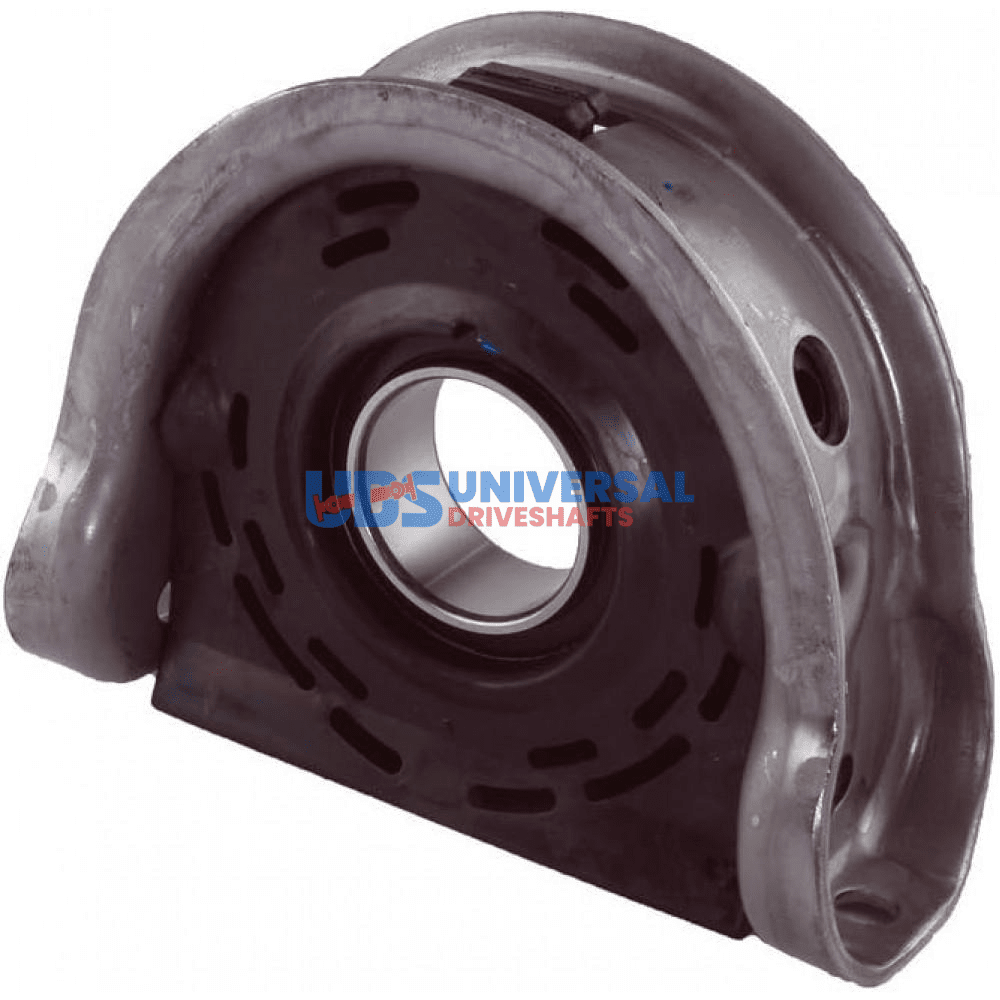

5003323 – Center Support Bearing – 1710 – 1760 – 1810 Series – 2.326″ ID
$97.50
1 in stock
15
People watching this product now!
Description
Center support bearing 5003323. 2.326″ inner dia | 3.330″ center-to-base | 8.622″ mount hole spacing. Inner dia and bracket spacing must match.
Full Description
Two-piece driveshafts need a center support bearing to keep the midshaft running true. The 5003323 center support bearing is the direct replacement -- correct ID, correct mount spacing.
5003323 Center Support Bearing -- 1710 - 1760 - 1810 Series Dimensions
Specs on the 5003323 center support bearing: 2.326" inner dia | 3.330" center-to-base | 8.622" mount hole spacing. Built for 1710 - 1760 - 1810 series applications. The inner diameter must match your midshaft stub -- too loose and the bearing walks; too tight and it won't press on.
Mount hole center-to-center spacing is the most overlooked spec on CSBs. If the holes don't match your crossmember bracket, the bearing will be offset and the shaft will run off-center.
Key Features
- Application: 1710 - 1760 - 1810 series -- verify your driveshaft series matches
- Bearing inner dia: 2.326" -- must match midshaft stub OD exactly
- Center-to-base: 3.330" -- height from shaft centerline to mounting surface
- Mount hole spacing: 8.622" -- must match crossmember bracket hole pattern
- Rubber isolator included -- absorbs vibration, reduces NVH at the midshaft
- Complete assembly -- bearing race, rubber mount, and bracket in one unit
Specifications
- SKU: 5003323
- Brand: UDS
- Application: 1710 - 1760 - 1810 Series
- Bearing ID: 2.326"
- Center to Base: 3.330"
- Mount Hole Spacing: 8.622"
Additional information
| Application |
1710 – 1760 – 1810 |
|---|---|
| Bearing id |
2.326 |
| Ctr to ctr of mount holes |
8.622 |
| Partn number |
5003323 |
| Center bearing to base |
3.330 |
