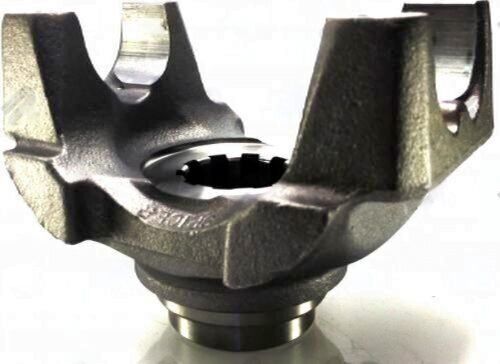

5-4-1721-1 – End Yoke – 1610 Series – 1.750″ Splines Dia – 2.188″ Hub Dia
$161.02
1 in stock
13 People watching this product now!
Description
1610 series 5-4-1721-1 end yoke. 1.750 x 10 spline | 2.188″ hub dia | 4.125″ CJ-to-end | 2.250″ bore. HR retention. Direct swap for axle or T-case output.
Full Description
The 5-4-1721-1 is a 1610 series end yoke. It connects the driveshaft to the axle or transfer case output -- and it carries the u-joint at that end.
5-4-1721-1 End Yoke -- 1610 Series Spline & Fitment
The 1610 series is the standard for Class 5-7 commercial trucks and heavy fleet.
Dimensions on the 5-4-1721-1 end yoke: 1.750 x 10 spline | 2.188" hub dia | 4.125" CJ-to-end | 2.250" bore. COUPLING SHAFT YOKE. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1610 -- Class 5-7 commercial trucks and heavy fleet
- Spline: 1.750 x 10 -- must match axle/T-case shaft exactly
- Hub dia: 2.188" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.125" -- affects driveshaft working length and angle
- Bore: 2.250" -- confirm against shaft OD
- Retention: HR -- verify against your yoke configuration
- Note: COUPLING SHAFT YOKE
Specifications
- SKU: 5-4-1721-1
- Brand: UDS
- Series: 1610
- Spline Dia: 1.750
- Spline Count: 10
- Hub Dia: 2.188"
- CJ to End: 4.125"
- Through Hole: 2.250"
- Style: HR
- Notes: COUPLING SHAFT YOKE
Additional information
| Cj to end | 4.125 |
|---|---|
| Hub dia | 2.188 |
| Notes | COUPLING SHAFT YOKE |
| Partn number | 5-4-1721-1 |
| Series | 1610 |
| Splines count | 10 |
| Splines dia | 1.750 |
| Style | HR |
| Through hole | 2.250" |
