4804-301 – End Yoke – 1480 Series – 1.590″ splines dia – 2.370″ Hub Dia
$216.35
1 in stock
14 People watching this product now!
Description
End yoke 4804-301, 1480. Specs: 1.590″ x 30 spline | 2.370″” hub dia | 3.900″” CJ-to-end | 1.630″ bore. GM 10.5 & GM 11.5. Spline count and series must match.
Full Description

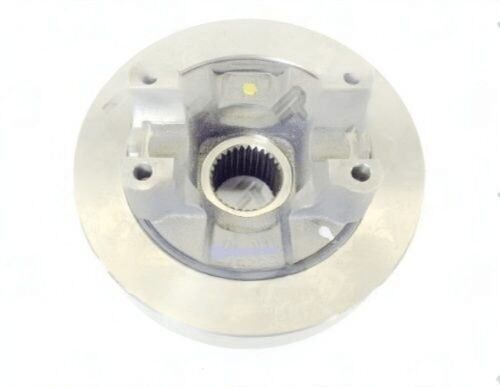

The 4804-301 end yoke slides onto the axle or transfer case output shaft, locking onto the splines and becoming the u-joint cradle at that end of the driveshaft.
4804-301 End Yoke Specifications & Series
The 4804-301 end yoke -- 1.590" x 30 spline | 2.370"" hub dia | 3.900"" CJ-to-end | 1.630" bore. GM 10.5 & GM 11.5.
The 1480 series is the standard for heavy commercial Class 3-4 trucks and Dana heavy applications. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1480 -- heavy commercial Class 3-4 trucks and Dana heavy applications
- Spline: 1.590" x 30 -- must match axle/T-case shaft exactly
- Hub dia: 2.370"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.900"" -- affects driveshaft working length and angle
- Bore: 1.630" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: GM 10.5 & GM 11.5
Specifications
- SKU: 4804-301
- Brand: UDS
- Series: 1480
- Spline Dia: 1.590"
- Spline Count: 30
- Hub Dia: 2.370""
- CJ to End: 3.900""
- Through Hole: 1.630"
- Style: BS
- Notes: GM 10.5 & GM 11.5
Additional information
| Cj to end | 3.900" |
|---|---|
| Hub dia | 2.370" |
| Notes | GM 10.5 & GM 11.5 ,STRAP PART NUMBER: 4870-20 |
| Partn number | 4804-301 |
| Series | 1480 |
| Splines count | 30 |
| Splines dia | 1.590" |
| Style | BS |
| Through hole | 1.630" |
