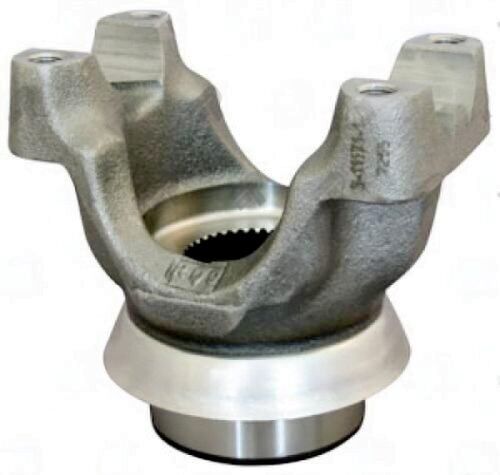

4804-01 – End Yoke – 1480 Series – 1.609″ Splines Dia – 2.500″ Hub Dia
$153.86
1 in stock
20 People watching this product now!
Description
4804-01 end yoke, 1480 series. 1.609 x 37 spline | 2.500″” hub dia | 4.328″ CJ-to-end | 2.000″ bore. Splined bore — verify count and diameter before ordering.
Full Description
A sloppy end yoke causes driveline clunk and accelerated u-joint wear. The 4804-01 end yoke is the direct replacement -- correct spline count, correct series.
4804-01 End Yoke Specifications & Series
The 4804-01 end yoke -- 1.609 x 37 spline | 2.500"" hub dia | 4.328" CJ-to-end | 2.000" bore. DANA 80.
The 1480 series is the standard for heavy commercial Class 3-4 trucks and Dana heavy applications. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1480 -- heavy commercial Class 3-4 trucks and Dana heavy applications
- Spline: 1.609 x 37 -- must match axle/T-case shaft exactly
- Hub dia: 2.500"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.328" -- affects driveshaft working length and angle
- Bore: 2.000" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: DANA 80
Specifications
- SKU: 4804-01
- Brand: UDS
- Series: 1480
- Spline Dia: 1.609
- Spline Count: 37
- Hub Dia: 2.500""
- CJ to End: 4.328"
- Through Hole: 2.000"
- Style: BS
- Notes: DANA 80
Additional information
| Cj to end | 4.328 |
|---|---|
| Hub dia | 2.500" |
| Notes | DANA 80 ,STRAP PART NUMBER: 3-70-38 |
| Partn number | 4804-01 |
| Series | 1480 |
| Splines count | 37 |
| Splines dia | 1.609 |
| Style | BS |
| Through hole | 2.000" |
