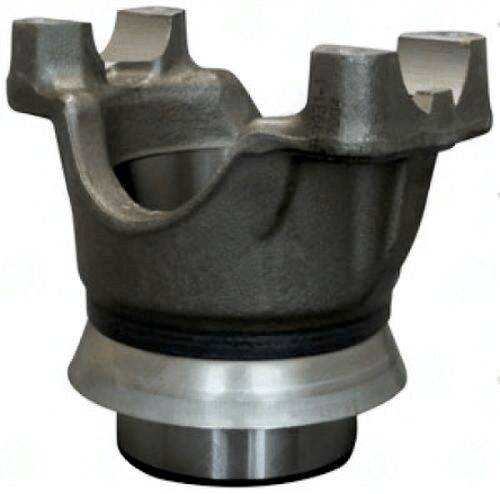

4104-02 – End Yoke – 1410 Series – 1.609″ Splines Dia – 2.500″ Hub Dia
$125.27
1 in stock
10
People watching this product now!
Description
4104-02 end yoke, 1410 series. 1.609 x 37 spline | 2.500″” hub dia | 4.312″ CJ-to-end | 2.000″ bore. Splined bore — verify count and diameter before ordering.
Full Description
Don't reuse a damaged end yoke. Cracked ears propagate fast under load. The 4104-02 end yoke is the new part -- correct spline, correct series, ready to install.
4104-02 End Yoke Specifications & Series
The 4104-02 end yoke -- 1.609 x 37 spline | 2.500"" hub dia | 4.312" CJ-to-end | 2.000" bore. DANA 80.
The 1410 series is the standard for HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1410 -- HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 1.609 x 37 -- must match axle/T-case shaft exactly
- Hub dia: 2.500"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.312" -- affects driveshaft working length and angle
- Bore: 2.000" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: DANA 80
Specifications
- SKU: 4104-02
- Brand: UDS
- Series: 1410
- Spline Dia: 1.609
- Spline Count: 37
- Hub Dia: 2.500""
- CJ to End: 4.312"
- Through Hole: 2.000"
- Style: BS
- Notes: DANA 80
Additional information
| Cj to end |
4.312 |
|---|---|
| Hub dia |
2.500" |
| Notes |
DANA 80 ,STRAP PART NUMBER: 3-70-28 |
| Partn number |
4104-02 |
| Series |
1410 |
| Splines count |
37 |
| Splines dia |
1.609 |
| Style |
BS |
| Through hole |
2.000" |
