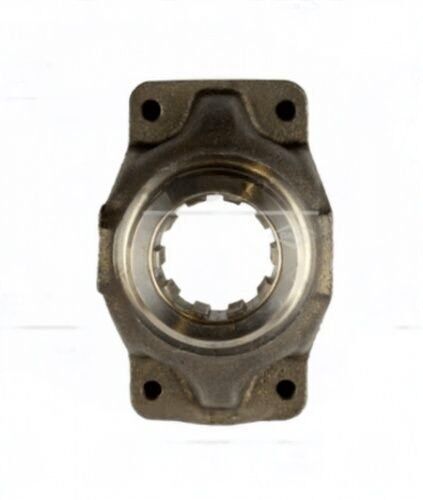

4-4-1901-1 End Yoke – Splined Bore Series1550 , Strap Style, 1.750×10 Spline, 2.625 Hub diameter
$90.55
6 in stock
18 People watching this product now!
Description
1550 series 4-4-1901-1 end yoke. 1.750 x 10 spline | 2.625″ hub dia | 4.672″ CJ-to-end | 2.234 bore. BS retention. Direct swap for axle or T-case output.
Full Description
Correct end yoke installation means the splines engage fully and the snap ring or nut seats solidly. The 4-4-1901-1 end yoke is machined to that exact shaft spec.
4-4-1901-1 End Yoke -- 1550 Series Spline & Fitment
The 1550 series is the standard for commercial fleet Class 5-6 and medium-duty vocational trucks. The 4-4-1901-1 end yoke specs: 1.750 x 10 spline | 2.625" hub dia | 4.672" CJ-to-end | 2.234 bore. Note: MIDSHIP YOKE.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1550 -- commercial fleet Class 5-6 and medium-duty vocational trucks
- Spline: 1.750 x 10 -- must match axle/T-case shaft exactly
- Hub dia: 2.625" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.672" -- affects driveshaft working length and angle
- Bore: 2.234 -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: MIDSHIP YOKE
Specifications
- SKU: 4-4-1901-1
- Brand: UDS
- Series: 1550
- Spline Dia: 1.750
- Spline Count: 10
- Hub Dia: 2.625"
- CJ to End: 4.672"
- Through Hole: 2.234
- Style: BS
- Notes: MIDSHIP YOKE
Additional information
| Cj to end | 4.672 |
|---|---|
| Hub dia | 2.625 |
| Notes | MIDSHIP YOKE |
| Partn number | 4-4-1901-1 |
| Series | 1550 |
| Splines count | 10 |
| Splines dia | 1.750 |
| Style | BS |
| Through hole | 2.234 |
