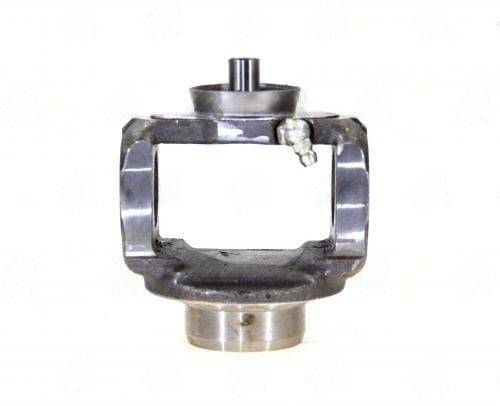

3R Ball Stud Yoke 3RL fits 2.000 X 0.120 Butt Dia 1.766″ 3R26-20
$63.90
4 in stock
12
People watching this product now!
Description
3R26-20 Ball Stud Yoke — fits 2.000X0.120 tube | 1.766″ butt dia | N/A ball stud. Genuine weld-in with CV ball stud. Verify ball stud dia and tube OD.
Full Description
The 3R26-20 ball stud yoke is a weld-in yoke with an integrated ball stud for CV head centering — it combines the tube-end weld connection and the CV centering mechanism in one part. For 3R series applications, the tube OD, butt diameter, and ball stud specification are all specific. The 3R26-20 ball stud yoke won't accept a different ball stud diameter or fit a different tube OD.
3R26-20 Ball Stud Yoke — 3R Series Tube Fit & Ball Stud
The 3R series covers metric 3-bolt flange — European and import platforms. The 3R26-20 ball stud yoke specs: fits 2.000X0.120 tube | 1.766" butt dia | N/A ball stud. DUST COVER RUBBER. Ball stud diameter determines which CV head this yoke is compatible with — it's the centering seat for the CV ball. Butt diameter determines tube OD fitment.
Verify ball stud diameter against your CV head socket before welding the 3R26-20 ball stud yoke to the tube. Once welded and balanced, the ball stud spec can't be changed without cutting out the entire yoke. Measure first, weld second.
Key Features
- Series: 3R
- Tube fit: 2.000X0.120
- Butt dia: 1.766"
- Ball stud: N/A — CV head centering
- Center-to-weld: N/A"
- Note: DUST COVER RUBBER
Specifications
- SKU: 3R26-20
- Brand: UDS
- Series: 3R
- Tube Fit: 2.000X0.120
- Butt Dia: 1.766"
- Ball Stud: N/A
- Notes: DUST COVER RUBBER
Additional information
| Ball stud length dia |
N/A |
|---|---|
| Butt dia |
1.766 |
| Center u j to weld |
N/A |
| Notes |
DUST COVER RUBBER |
| Partn number |
3R26-20 |
| Series |
3R |
| Tube dia wall |
2.000X0.120 |
| Brand |
UDS |
