Brand:

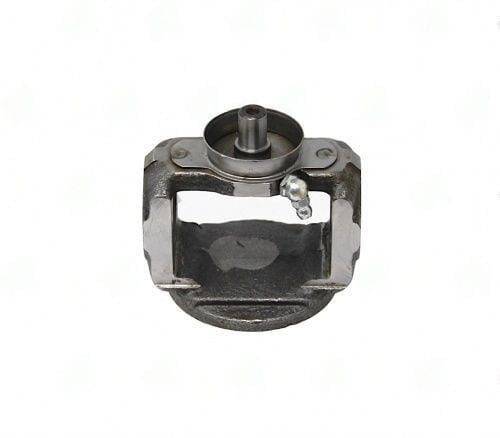

3R Ball Stud Yoke 3RL fits 1.250 X 0.120 Butt Dia 1.016 3R26-13
$104.07
4 in stock
11 People watching this product now!
Description
3R26-13 Ball Stud Yoke — fits 1.250X0.120 tube | 1.016″ butt dia | 0.500X0.950 ball stud. Premium weld-in with CV ball stud. Verify ball stud dia and tube OD.
Full Description
The 3R26-13 ball stud yoke is a weld-in yoke with an integrated ball stud for CV head centering — it combines the tube-end weld connection and the CV centering mechanism in one part. For 3R series applications, the tube OD, butt diameter, and ball stud specification are all specific. The 3R26-13 ball stud yoke won't accept a different ball stud diameter or fit a different tube OD.
3R26-13 Ball Stud Yoke — 3R Series Tube Fit & Ball Stud
The 3R series covers metric 3-bolt flange — European and import platforms. The 3R26-13 ball stud yoke specs: fits 1.250X0.120 tube | 1.016" butt dia | 0.500X0.950 ball stud. DUST COVER RUBBER. Ball stud diameter determines which CV head this yoke is compatible with — it's the centering seat for the CV ball. Butt diameter determines tube OD fitment.
Verify ball stud diameter against your CV head socket before welding the 3R26-13 ball stud yoke to the tube. Once welded and balanced, the ball stud spec can't be changed without cutting out the entire yoke. Measure first, weld second.
Key Features
- Series: 3R
- Tube fit: 1.250X0.120
- Butt dia: 1.016"
- Ball stud: 0.500X0.950 — CV head centering
- Center-to-weld: 1.422"
- Note: DUST COVER RUBBER
Specifications
- SKU: 3R26-13
- Brand: UDS
- Series: 3R
- Tube Fit: 1.250X0.120
- Butt Dia: 1.016"
- Ball Stud: 0.500X0.950
- Notes: DUST COVER RUBBER
Additional information
| Ball stud length dia | 0.500X0.950 |
|---|---|
| Butt dia | 1.016 |
| Center u j to weld | 1.422 |
| Notes | DUST COVER RUBBER |
| Partn number | 3R26-13 |
| Series | 3R |
| Tube dia wall | 1.250X0.120 |
| Brand | UDS |
