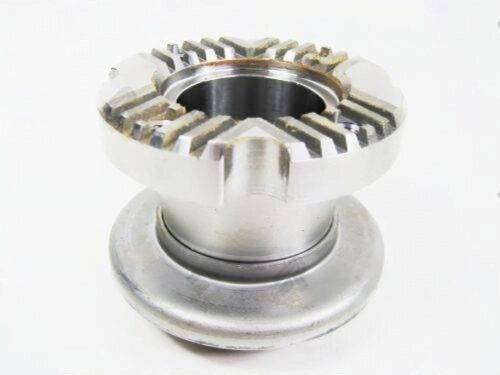

3R01-292 – End Yoke – 3R Series – 1.312″ Splines Dia – 2.110″ Hub Dia
$125.68
1 in stock
15
People watching this product now!
Description
3R01-292 end yoke, 3R series. 1.312 x 30 spline | 2.110″” hub dia | 3.125″ CJ-to-end | 1.150″ bore. Splined bore — verify count and diameter before ordering.
Full Description
End yoke failures are usually visible: worn splines, cracked ears, or corrosion at the cap bores. The 3R01-292 is the correct 3R series replacement.
3R01-292 End Yoke Specifications & Series
The 3R01-292 end yoke -- 1.312 x 30 spline | 2.110"" hub dia | 3.125" CJ-to-end | 1.150" bore. CHRYSLER 9.25 FRONT SHAFT.
The 3R series is the standard for metric 3-bolt flange applications -- European and import platforms. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 3R -- metric 3-bolt flange applications -- European and import platforms
- Spline: 1.312 x 30 -- must match axle/T-case shaft exactly
- Hub dia: 2.110"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.125" -- affects driveshaft working length and angle
- Bore: 1.150" -- confirm against shaft OD
- Retention: SER -- verify against your yoke configuration
- Note: CHRYSLER 9.25 FRONT SHAFT
Specifications
- SKU: 3R01-292
- Brand: UDS
- Series: 3R
- Spline Dia: 1.312
- Spline Count: 30
- Hub Dia: 2.110""
- CJ to End: 3.125"
- Through Hole: 1.150"
- Style: SER
- Notes: CHRYSLER 9.25 FRONT SHAFT
Additional information
| Cj to end |
3.125 |
|---|---|
| Hub dia |
2.110" |
| Notes |
CHRYSLER 9.25 FRONT SHAFT ,SERRATED FLANGE TYPE |
| Partn number |
3R01-292 |
| Series |
3R |
| Splines count |
30 |
| Splines dia |
1.312 |
| Style |
SER |
| Through hole |
1.150" |
