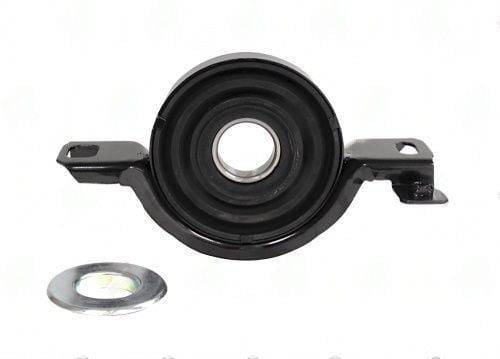

3680-45 – Center Support Bearing – Gm Application – 1.181″ ID – 250″ Center Bearing To Base
$103.97
10 in stock
Description
GM application center support bearing with 1.181″ bore and 0.250″ center-to-base height; minimal-drop rubber-isolated assembly for GM two-piece driveshaft flush hanger brackets.
Full Description
- SKU
- 3680-45
- Application
- GM (confirm via VIN)
- Bore ID
- 1.181" (30 mm)
- Center to Base
- 0.250"
- Type
- Rubber-isolated center support bearing
Application notes: the 0.250" center-to-base height on the 3680-45 places it in the same ultra-compact category as the 2780-16 (BMW) and 9980-56 (Subaru) -- a design where the crossmember sits nearly flush with the driveshaft centerline. On GM applications, this geometry appears in certain Cadillac and performance car platforms where the chassis tunnel routes the propshaft closer to the frame than standard truck configurations. The 0.250" height leaves very limited clearance for fastener access -- use a low-profile socket or crowfoot to torque the bracket fasteners to specification without contacting the bearing housing.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 250 |
| Ctr to ctr of mount holes | 6.750 |
| Notes | SRX |
| Partn number | 3680-45 |
