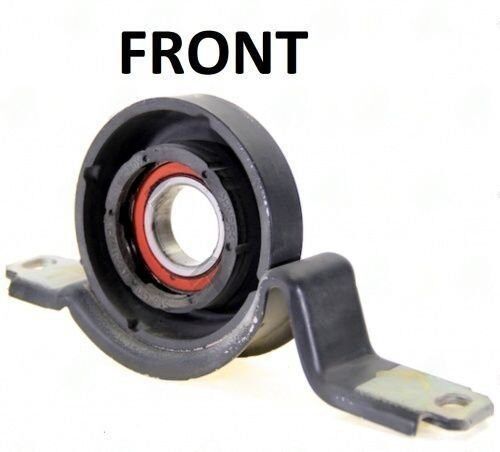

3680-40 – Center Support Bearing – Gm Application – 1.181″ ID – 1.375″ Center Bearing To Base
$97.83
5 in stock
Description
GM application center support bearing with 1.181″ bore and 1.375″ center-to-base height; rubber-isolated ball bearing for GM two-piece driveshaft standard compact hanger bracket positions.
Full Description
The 3680-40 and 3680-80 share the same bore (1.181") and center-to-base height (1.375") but differ in bracket configuration for different GM application variants. This is a recurring pattern in the 3680 GM series -- dimensional duplicates that serve different model-year or body-style configurations. When selecting between 3680-40 and 3680-80, confirm the GM OEM part number from the removed bearing.
- Bore ID: 1.181" (30 mm) -- confirm with micrometer
- Center to base: 1.375" -- identical to 3680-80; bracket profile is the distinguishing factor
- Rubber isolator: bonded construction for GM-platform driveshaft frequency damping
- Compatible with center support bearing brackets on applicable GM models
Warning: a 1.375" and 1.500" center-to-base measurement looks similar when measured with a ruler. Use a digital caliper for this measurement -- a 0.125" error here selects the wrong part and introduces a propshaft angle deviation that causes vibration. The difference is approximately 3.2 mm -- important to resolve to 0.1 mm accuracy.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.375 |
| Ctr to ctr of mount holes | 7.375 |
| Notes | Camaro 2010+ |
| Partn number | 3680-40 |
