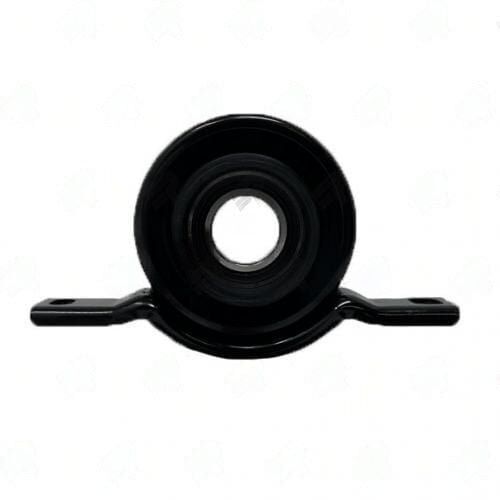

3680-25 – Center Support Bearing – Gm Application – 1.181″ ID – 1.375″ Center Bearing To Base
$97.83
10 in stock
Description
GM application center support bearing with 1.181″ bore and 1.375″ center-to-base height; rubber-isolated assembly — confirm OEM part number to distinguish from other 1.375″ GM variants.
Full Description
| SKU | 3680-25 |
|---|---|
| Application | GM (confirm via OEM part number) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 1.375" |
| Type | Rubber-isolated center support bearing |
| Note | Three GM SKUs share 1.181" bore and 1.375" height: 3680-25, 3680-40, 3680-80 -- verify via OEM P/N |
- The 3680-25, 3680-40, and 3680-80 all measure 1.181" bore and 1.375" center-to-base -- bracket arm angle and slot geometry differentiate them
- Order by GM OEM part number from the removed bearing assembly, not by dimension alone
- GM OEM part numbers in the 22800834 and 12472372 families cover this range
Tip: when three SKUs share the same dimensions, the most reliable identification method is to physically compare the removed bracket against the supplier's bracket profile image. The arm angle (the angle between the bearing centerline and the bracket mounting flange) is the primary differentiator and is visible in a side-profile photograph of the removed bearing assembly.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.375 |
| Ctr to ctr of mount holes | 6.750 |
| Notes | CADILLAC |
| Partn number | 3680-25 |
