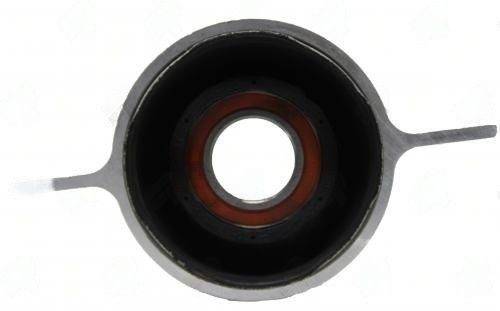

3680-13 – Center Support Bearing – Cadillac Ct6 Application – 1.181″ ID – 5.875″ Ctr To Ctr Of Mount Hole
$94.15
10 in stock
Description
Cadillac CT6 application center support bearing with 1.181″ bore and 5.875″ mounting hole center-to-center span; rubber-isolated assembly for CT6 AWD two-piece propshaft hanger.
Full Description
Q: Why does the 3680-13 specify mounting hole spacing rather than center-to-base height? A: The Cadillac CT6 uses a bolt-pattern bracket design with two discrete mounting holes at a fixed 5.875" center-to-center separation, rather than the slot-type brackets common on trucks. The hole spacing is the primary identification dimension for this application. The bore ID is still 1.181" (30 mm).
Q: Can I use the 3680-20 (standard CTS bearing) in a CT6? A: No -- the CT6 and CTS use different bracket designs and mounting geometries. The CT6's 5.875" hole spacing is specific to that platform. Using the CTS bracket on a CT6 would require drilling new holes in the crossmember or modifying the bracket, which is not recommended.
Q: What GM OEM part number does the 3680-13 cross-reference for the Cadillac CT6 center support bearing? A: GM OEM part numbers for the CT6 center bearing are in the 84036186 series; confirm via VIN and GM GMPD parts catalog for exact production year coverage on the AWD drivetrain variant.
Q: Can I use the 3680-20 (standard CTS bearing) in a CT6? A: No -- the CT6 and CTS use different bracket designs and mounting geometries. The CT6's 5.875" hole spacing is specific to that platform. Using the CTS bracket on a CT6 would require drilling new holes in the crossmember or modifying the bracket, which is not recommended.
Q: What GM OEM part number does the 3680-13 cross-reference for the Cadillac CT6 center support bearing? A: GM OEM part numbers for the CT6 center bearing are in the 84036186 series; confirm via VIN and GM GMPD parts catalog for exact production year coverage on the AWD drivetrain variant.
Additional information
| Application | Cadillac CT6 |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 5.875 |
| Notes | bearing centerline zero |
| Partn number | 3680-13 |
