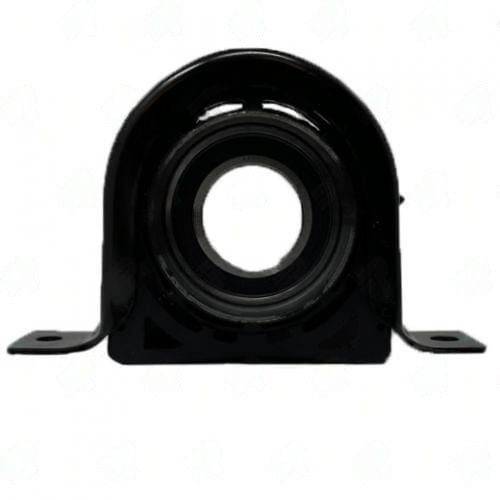

3580-40 – Center Support Bearing – Nissan Application – 1.574″ ID – 2.250″ Center Bearing To Base
$59.92
10 in stock
Description
Nissan application center support bearing: 1.574″ bore, 2.250″ center-to-base height; rubber-isolated ball bearing assembly for two-piece driveshaft mid-span support.
Full Description
3580-40 Key Specifications
Bore ID: 1.574" (40 mm) | Center to Base: 2.250" | Application: Nissan | Type: Rubber-isolated center support bearing
Nissan two-piece driveshaft designs commonly use a pressed stub shaft with a 40 mm journal. The 3580-40 fits this bore with the standard rubber-isolated ball bearing bracket at 2.250" center-to-base height. One specification worth noting: Nissan engineering calls for the isolator rubber to be oriented with the rubber compression axis vertical -- the bracket has a directional arrow on some variants. Installing the bracket rotated 90 degrees off-axis loads the rubber in shear rather than compression, significantly reducing its effective isolation stiffness.
Nissan OEM cross-references include Jidosha Buhin (NPN) part numbers and Hitachi Astemo equivalents in the 37521 and 37511 series -- confirm via your chassis code before installation.
Additional information
| Application | Nissan |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.250 |
| Ctr to ctr of mount holes | 6.665 |
| Notes | rubber cushion w/o canister |
| Partn number | 3580-40 |
