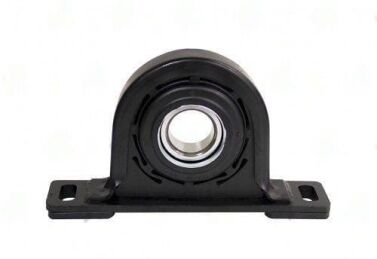

3580-35 – Center Support Bearing – 1350 Series – 1.574″ ID – 2.750″ Center Bearing To Base
$67.26
Out of stock
Description
1350 series center support bearing with 1.574″ bore and 2.750″ center-to-base height; rubber-isolated ball bearing for mid-span hanger mounting.
Full Description
| SKU | 3580-35 |
|---|---|
| U-Joint Series | 1350 |
| Bore ID | 1.574" (40 mm) |
| Center to Base | 2.750" |
| Cap Diameter Reference | 1350 series uses 1.188" bearing caps |
| Type | Rubber-isolated ball bearing assembly |
- Designed for 1350-series driveline builds -- the 1350 U-joint uses 1.188" cap diameter, offering more torque capacity than the 1310 series
- 2.750" center-to-base height -- measure your bracket opening before ordering; this unit is taller than the 2.250" variants
- The center support bearing bore must match the stub shaft journal OD exactly -- use a digital micrometer, not a caliper, for accurate measurement
- Spicer 2-26-357 series and Dana P/N equivalents may apply to this geometry
Warning: do not use thread-locking compound on the bracket bolts without first verifying the crossmember uses steel inserts -- thread locker on aluminum crossmember threads damages the parent material during removal.
Additional information
| Application | 1350 |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.750 |
| Ctr to ctr of mount holes | 7.625 |
| Notes | Sprinter, Used in 1350 series new shaft conversions |
| Partn number | 3580-35 |
