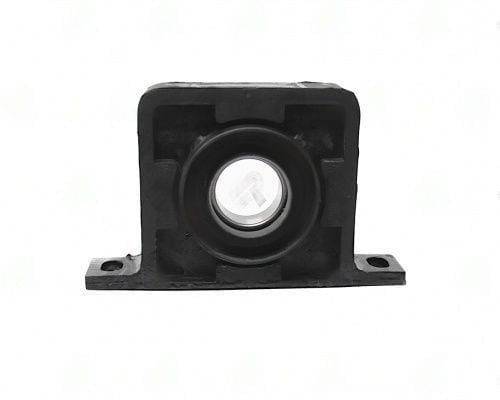

3580-20 – Center Support Bearing – Dodge Application – 1.574″ ID – 2.250″ Center Bearing To Base
$67.01
10 in stock
Description
Dodge application center support bearing with 1.574″ bore and 2.250″ center-to-base height; rubber-isolated ball bearing for two-piece driveshaft mid-span support.
Full Description
- SKU
- 3580-20
- Application
- Dodge two-piece driveshaft systems
- Bore ID
- 1.574" (40 mm)
- Center to Base Height
- 2.250"
- Type
- Rubber-isolated center support bearing assembly
- Cross-Reference
- Spicer 2-3049-1 and equivalent Dana part numbers
Application notes: Dodge Ram and Durango applications with two-piece rear driveshafts commonly require this unit. The 2.250" mount height is the standard dimension for Dodge center hanger brackets -- verify against the removed unit before installation. One frequently overlooked check: inspect the rubber isolator on the removed bearing for asymmetric cracking. If the rubber has cracked only on one side, the bracket was mounted at an angle, indicating a bent crossmember or missing shim that must be corrected before installing the replacement.
Additional information
| Application | DODGE |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.250 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Dodge Square with slotted holes, Square like 40026573 |
| Partn number | 3580-20 |
