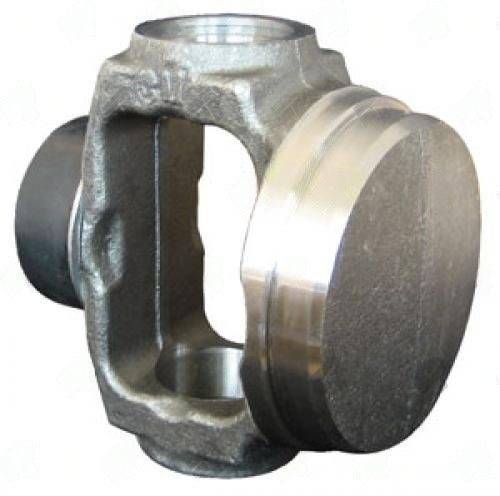

3526-30 – Ball Stud Yokes – 1350 Series – Ball Stud Length Dia 0.500X0.810 – Butt Dia 2.844

The 3526-30 ball stud yoke is a weld-in yoke with an integrated ball stud for CV head centering — it combines the tube-end weld connection and the CV centering mechanism in one part. For 1350 series applications, the tube OD, butt diameter, and ball stud specification are all specific. The 3526-30 ball stud yoke won't accept a different ball stud diameter or fit a different tube OD.

3526-30 Ball Stud Yoke — 1350 Series Tube Fit & Ball Stud

The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3526-30 ball stud yoke specs: fits 3.000X0.083 tube | 2.844" butt dia | 0.500X0.810 ball stud. DUST COVER RUBBER. Ball stud diameter determines which CV head this yoke is compatible with — it's the centering seat for the CV ball. Butt diameter determines tube OD fitment.

Verify ball stud diameter against your CV head socket before welding the 3526-30 ball stud yoke to the tube. Once welded and balanced, the ball stud spec can't be changed without cutting out the entire yoke. Measure first, weld second.

Key Features

• Series: 1350
• Tube fit: 3.000X0.083
• Butt dia: 2.844"
• Ball stud: 0.500X0.810 — CV head centering
• Center-to-weld: 1.438"
• Note: DUST COVER RUBBER

Specifications

• SKU: 3526-30
• Brand: UDS
• Series: 1350
• Tube Fit: 3.000X0.083
• Butt Dia: 2.844"
• Ball Stud: 0.500X0.810
• Notes: DUST COVER RUBBER
