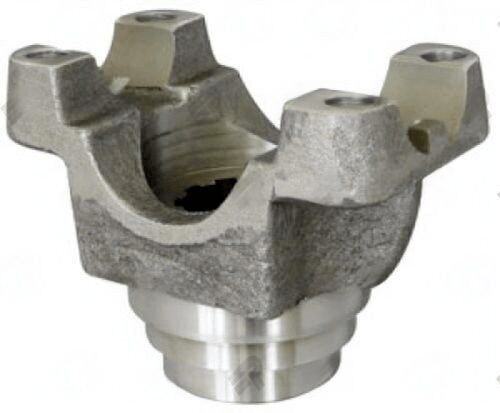

3504-101 – End Yoke – 1350 Series – 1.375″ Splines Dia – 1.750″ Hub Dia
$125.14
1 in stock
13 People watching this product now!
Description
3504-101 end yoke, 1350 series. 1.375 x 10 spline | 1.750″” hub dia | 3.188″ CJ-to-end | 1.500″ bore. Splined bore — verify count and diameter before ordering.
Full Description
Correct end yoke installation means the splines engage fully and the snap ring or nut seats solidly. The 3504-101 end yoke is machined to that exact shaft spec.
3504-101 End Yoke -- 1350 Series Spline & Fitment
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds.
Dimensions on the 3504-101 end yoke: 1.375 x 10 spline | 1.750"" hub dia | 3.188" CJ-to-end | 1.500" bore. SAME AS 3-4-178-1X - U BOLT KIT NUMBER: 3-94-18X. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Spline: 1.375 x 10 -- must match axle/T-case shaft exactly
- Hub dia: 1.750"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.188" -- affects driveshaft working length and angle
- Bore: 1.500" -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: SAME AS 3-4-178-1X - U BOLT KIT NUMBER: 3-94-18X
Specifications
- SKU: 3504-101
- Brand: UDS
- Series: 1350
- Spline Dia: 1.375
- Spline Count: 10
- Hub Dia: 1.750""
- CJ to End: 3.188"
- Through Hole: 1.500"
- Style: UB
- Notes: SAME AS 3-4-178-1X - U BOLT KIT NUMBER: 3-94-18X
Additional information
| Cj to end | 3.188 |
|---|---|
| Hub dia | 1.750" |
| Notes | SAME AS 3-4-178-1X – U BOLT KIT NUMBER: 3-94-18X |
| Partn number | 3504-101 |
| Series | 1350 |
| Splines count | 10 |
| Splines dia | 1.375 |
| Style | UB |
| Through hole | 1.500" |
