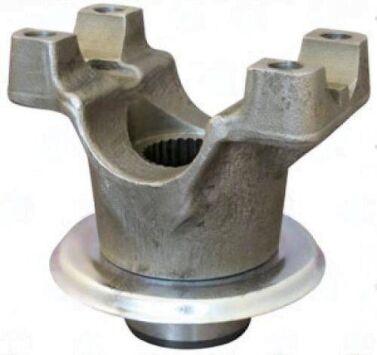

3504-08 – End Yoke – 1350 Series – 1.218″ Splines Dia – 28 Spline
$127.52
1 in stock
18
People watching this product now!
Description
3504-08 End Yoke — 1350 series, 1.218 x 28 spline | 1.812″ hub dia | 4.000″” CJ-to-end | 2.425 bore. Professional replacement, spline-specific fit. Count splines before ordering.
Full Description
The 3504-08 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 3504-08 end yoke is machined to one specific spline specification for 1350 series applications.
3504-08 End Yoke — Spline Specs & 1350 Series Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3504-08 end yoke specs: 1.218 x 28 spline | 1.812" hub dia | 4.000"" CJ-to-end | 2.425 bore. FORD 9. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3504-08 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1350 — 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Spline: 1.218 x 28 — must match output shaft exactly
- Hub dia: 1.812" — outer dimension, verify clearance
- CJ-to-end: 4.000"" — positions u-joint relative to axle flange
- Bore: 2.425
- Style: UB
- Brand: UDS
- Note: FORD 9
Specifications
- SKU: 3504-08
- Brand: UDS
- Series: 1350
- Spline Dia: 1.218
- Spline Count: 28
- Hub Dia: 1.812"
- CJ to End: 4.000""
- Through Hole: 2.425
- Style: UB
- Notes: FORD 9
Additional information
| Cj to end | 4.000″ |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 9, U BOLT PART NUMBER: 3-94-18 |
| Partn number | 3504-08 |
| Series | 1350 |
| Splines count | 28 |
| Splines dia | 1.218 |
| Style | UB |
| Through hole | 2.425 |
