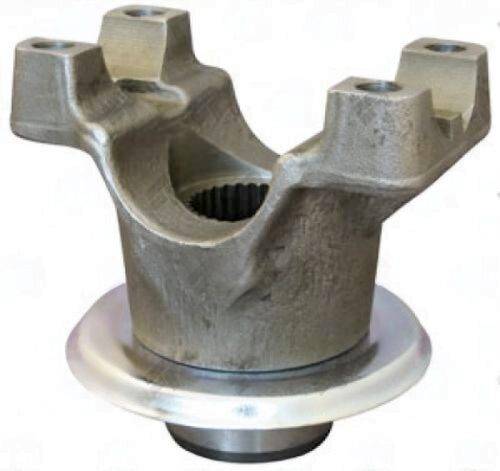

3504-08 – End Yoke – 1350 Series – 1.218″ Splines Dia – 28 Spline
$127.52
1 in stock
13 People watching this product now!
Description
End yoke 3504-08, 1350. Specs: 1.218 x 28 spline | 1.812″ hub dia | 4.000″” CJ-to-end | 2.425 bore. FORD 9. Spline count and series must match.
Full Description
Don't reuse a damaged end yoke. Cracked ears propagate fast under load. The 3504-08 end yoke is the new part -- correct spline, correct series, ready to install.
3504-08 End Yoke Specifications & Series
The 3504-08 end yoke -- 1.218 x 28 spline | 1.812" hub dia | 4.000"" CJ-to-end | 2.425 bore. FORD 9.
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Spline: 1.218 x 28 -- must match axle/T-case shaft exactly
- Hub dia: 1.812" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.000"" -- affects driveshaft working length and angle
- Bore: 2.425 -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: FORD 9
Specifications
- SKU: 3504-08
- Brand: UDS
- Series: 1350
- Spline Dia: 1.218
- Spline Count: 28
- Hub Dia: 1.812"
- CJ to End: 4.000""
- Through Hole: 2.425
- Style: UB
- Notes: FORD 9
Additional information
| Cj to end | 4.000" |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 9 ,U BOLT PART NUMBER: 3-94-18 |
| Partn number | 3504-08 |
| Series | 1350 |
| Splines count | 28 |
| Splines dia | 1.218 |
| Style | UB |
| Through hole | 2.425 |
