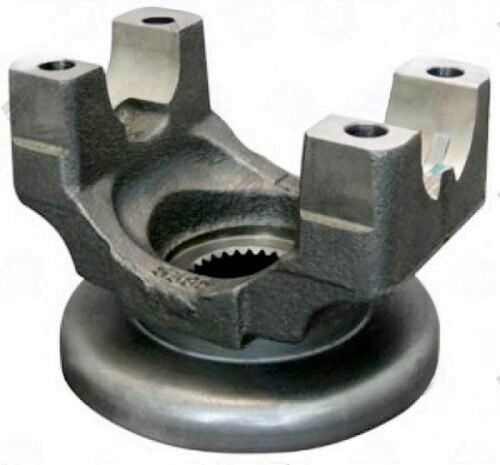

3504-04 – End Yoke – 1.312″ Splines Dia – 2.110″ Hub Dia – 30 Spline
$121.22
1 in stock
20 People watching this product now!
Description
3504-04 End Yoke — 1350 series, 1.312 x 30 spline | 2.110″” hub dia | 3.125″ CJ-to-end | 1.150″ bore. Professional replacement, spline-specific fit. Count splines before ordering.
Full Description
That clunk under acceleration that goes away when you grab the driveshaft and check for play — it's usually here, at the end yoke splines. The 3504-04 end yoke is the correct 1350 series replacement. Count the splines on your output shaft before ordering. Don't guess by series alone.
3504-04 End Yoke — Spline Specs & 1350 Series Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3504-04 end yoke specs: 1.312 x 30 spline | 2.110"" hub dia | 3.125" CJ-to-end | 1.150" bore. HAS SPEEDY SLEEVE ON HUB. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface.
Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3504-04 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.
Key Features
- Series: 1350 — 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Spline: 1.312 x 30 — must match output shaft exactly
- Hub dia: 2.110"" — outer dimension, verify clearance
- CJ-to-end: 3.125" — positions u-joint relative to axle flange
- Bore: 1.150"
- Style: BS
- Brand: UDS
- Note: HAS SPEEDY SLEEVE ON HUB
Specifications
- SKU: 3504-04
- Brand: UDS
- Series: 1350
- Spline Dia: 1.312
- Spline Count: 30
- Hub Dia: 2.110""
- CJ to End: 3.125"
- Through Hole: 1.150"
- Style: BS
- Notes: HAS SPEEDY SLEEVE ON HUB
Additional information
| Cj to end | 3.125 |
|---|---|
| Hub dia | 2.110" |
| Notes | HAS SPEEDY SLEEVE ON HUB |
| Partn number | 3504-04 |
| Series | 1350 |
| Splines count | 30 |
| Splines dia | 1.312 |
| Style | BS |
| Through hole | 1.150" |
