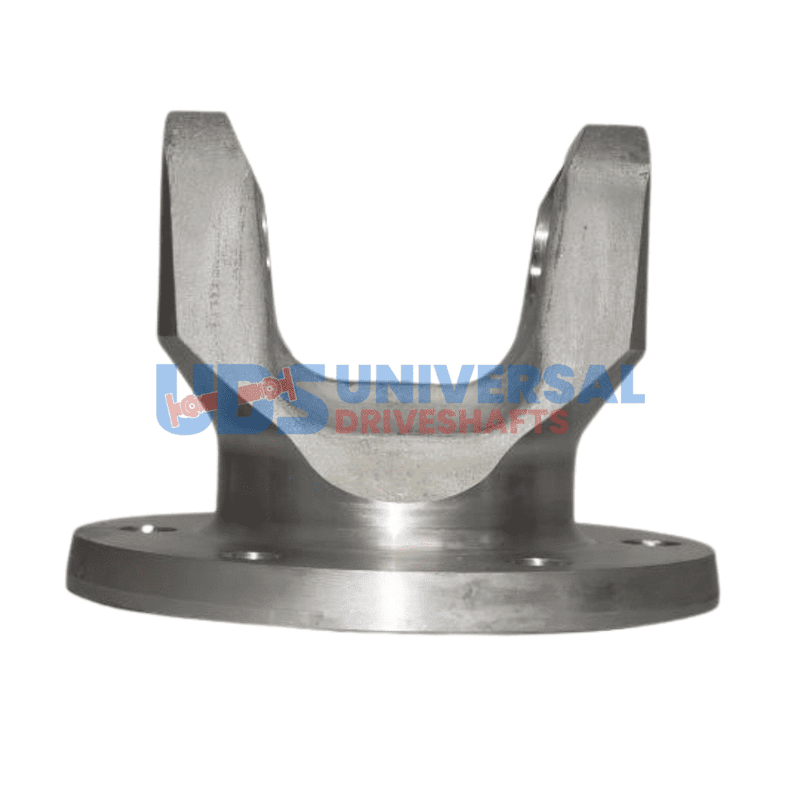

3502-0145 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$143.73
10 in stock
13
People watching this product now!
Description
3502-0145U UDS 1350 series aluminum tri flange yoke for GM. Dual 105mm/110mm bolt circle, 0.551″ pilot, 6x14mm bolt holes, 14mm nose hole, 3.000″ CJ-to-flat.
Full Description
3502-0145U UDS 1350 Series Aluminum Tri Flange Yoke — 105mm / 110mm Dual Pattern, GM Applications
The 3502-0145U is a 1350 series 6061-T6 aluminum tri flange yoke manufactured by UDS for GM applications. It accommodates both a 105mm (4.134-inch) and a 110mm (4.331-inch) bolt circle spacing with 6 x 14mm bolt holes and a 14mm nose hole. The pilot diameter is 0.551 inches and the CJ-to-flat dimension is 3.000 inches. The hole-to-hole dimension is 3.580 inches for the 105mm pattern and 3.750 inches for the 110mm pattern.
Specifications
- Part Number: 3502-0145U
- Brand: UDS
- Series: 1350
- Pilot Diameter: 0.551"
- Bolt Circle Diameter: 4.134" (105mm) or 4.331" (110mm) — dual pattern
- Bolt Hole Diameter: 0.559" (14mm)
- Bolt Holes: 6
- CJ to Flat: 3.000"
- Notes: 6061-T6 Aluminum Tri Flange; 105mm BC hole-to-hole 3.580"; 110mm BC hole-to-hole 3.750"; 14mm bolt holes; 14mm nose hole; GM apps
When fitting the 3502-0145U, confirm the GM companion tri flange uses either a 105mm or 110mm bolt circle with 14mm bolt holes and a 0.551-inch pilot. The dual bolt pattern provides compatibility across two common GM tri-prong specifications — use the hole-to-hole dimension (3.580-inch for 105mm, 3.750-inch for 110mm) to confirm which pattern your application uses. The 14mm nose hole centers on the 14mm pilot feature.
The 3502-0145U is the 14mm bolt hole variant for GM applications. Compare it against the 3502-0161U, which uses 12mm bolt holes on the same 105mm/110mm dual pattern — the bolt hole diameter is the primary distinction between these two part numbers.
Additional information
| Partn number | 3502-0145 |
|---|---|
| Pilot dia | 0.551 |
| Bolt circle dia | 4.134 |
| Bolt hole dia | 0.559 |
| Series | 1350 |
| Brand | UDS |
| Notes | Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 14mm nose hole, GM apps. Hole to hole: 105mm BC = 3.580″, 110mm BC = 3.750″ |
| Bolt Holes | 6 |
| Cj to flat | 3.000 |
