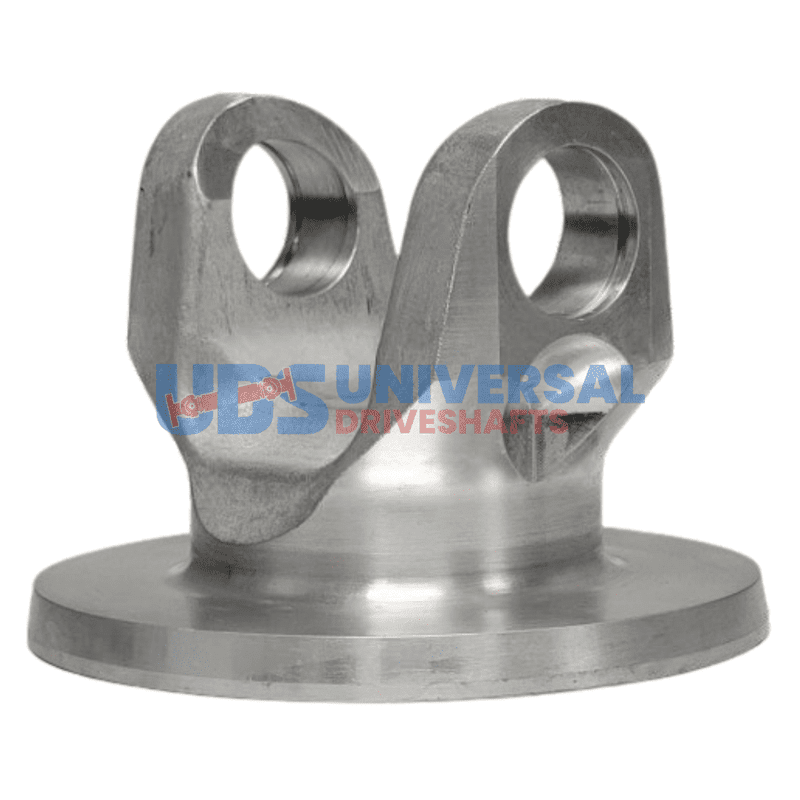

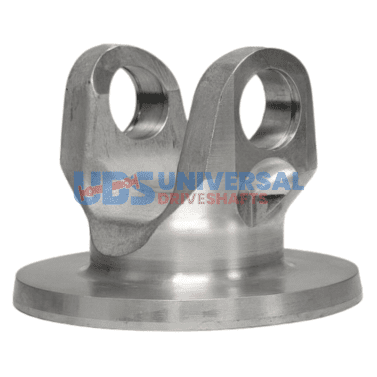

3502-0201 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$143.73
10 in stock
16
People watching this product now!
Description
3502-0201U UDS 1350 series aluminum tri flange yoke for Rover applications. 96mm bolt circle, 0.787″ pilot, 3x12mm bolt holes, 20mm nose hole, 3.000″ CJ-to-flat.
Full Description
3502-0201U UDS 1350 Series Aluminum Tri Flange Yoke — 96mm Bolt Circle, Rover Applications
The 3502-0201U is a 1350 series 6061-T6 aluminum tri flange yoke manufactured by UDS for Rover applications. The bolt circle diameter is 3.780 inches (96mm), the pilot diameter is 0.787 inches, and the bolt hole diameter is 0.480 inches with 3 holes. The CJ-to-flat dimension is 3.000 inches. The tri flange uses a 20mm nose hole with 3 x 12mm bolt holes on the 96mm (3.780-inch) bolt circle.
Specifications
- Part Number: 3502-0201U
- Brand: UDS
- Series: 1350
- Pilot Diameter: 0.787"
- Bolt Circle Diameter: 3.780" (96mm)
- Bolt Hole Diameter: 0.480" (12mm)
- Bolt Holes: 3
- CJ to Flat: 3.000"
- Notes: Aluminum Tri Flange; 20mm nose hole; 3 x 12mm bolt holes on 96mm (3.780"); Rover apps
When fitting the 3502-0201U, confirm the Rover companion tri flange uses a 96mm (3.780-inch) bolt circle with 3 x 12mm bolt holes and a 0.787-inch pilot. The 20mm nose hole is larger than the 16mm nose found on other tri flange configurations in the UDS lineup — verify this matches the centering feature on your specific Rover flange.
The 3502-0201U is designed for Rover driveline applications that use the 96mm tri-prong pattern. The 0.787-inch pilot is also distinct from other 1350 tri flanges — cross-reference pilot diameter, bolt circle, and nose hole dimensions together when confirming fitment for your Rover application.
Additional information
| Partn number | 3502-0201 |
|---|---|
| Pilot dia | 0.787 |
| Bolt circle dia | 3.780 |
| Bolt hole dia | 0.480 |
| Series | 1350 |
| Brand | UDS |
| Notes | Aluminum Tri Flange, 20mm nose hole, 3x12mm bolt holes on 96mm (3.780), Rover apps |
| Bolt Holes | 3 |
| Cj to flat | 3.000 |
