3502-0161 Flange Yoke 1350 Series – 6L80, 6L90, 8L90, 10L80 Transmissions; TR6060, TR3160 manual transmissions; ’05-’06 Pontiac GTO (differential side) yokes. May fit other models.
$129.71
9 in stock
Description

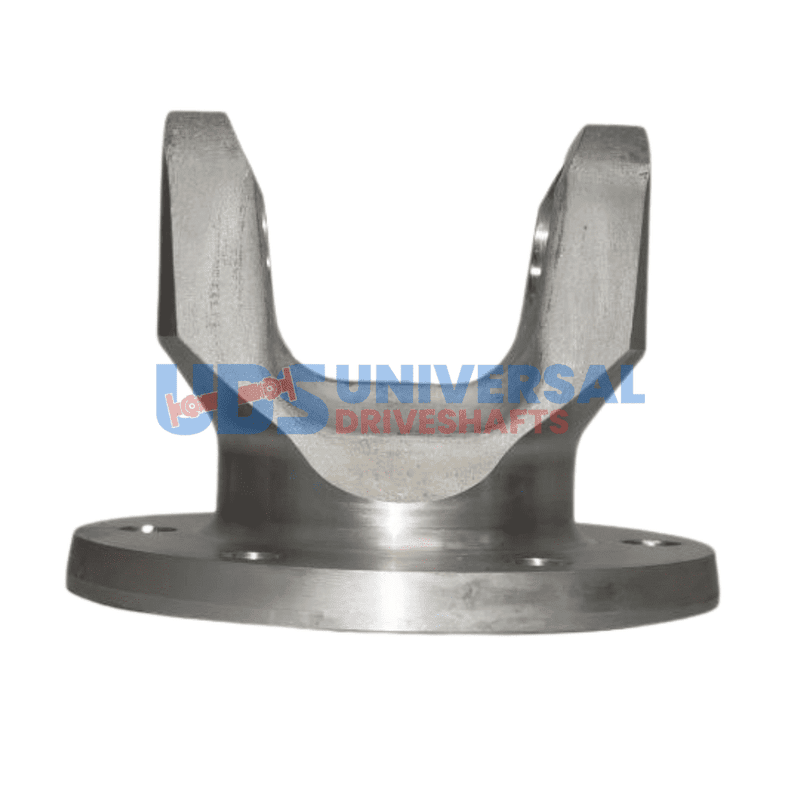

Series 1350 flange yoke 3502-0161U from UDS — precision pilot diameter and bolt circle for accurate driveshaft assembly and balance.
Full Description
For drivetrain builders working with Series 1350 flange and yoke combinations, the 3502-0161U from UDS is the correct flange yoke specification. Pilot: 0.630". Bolt circle: 4.330". Bolt holes: 0.500". Dimensional compliance with the Series 1350 standard ensures interoperability with OEM and aftermarket companion flanges produced to the same specification.
Technical Specifications -- 3502-0161U
| Specification | Value |
|---|---|
| Part Number | 3502-0161U |
| Brand | UDS |
| Series | 1350 |
| Type | Flange Yoke |
| Pilot Diameter | 0.630" |
| Bolt Circle Diameter | 4.330" |
| Bolt Hole Diameter | 0.500" |
| Notes | Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 12mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750" |
Fitment & Mating Flange Specs
The 3502-0161U is compatible with all Series 1350 companion flanges and yoke bores meeting the published dimensional standard. The 0.630" pilot diameter is a precision ground fit that centers the yoke concentrically on the mating component. Four bolt holes on a 4.330" bolt circle accept standard Series 1350 fasteners. Verify that the mating component -- whether a differential pinion flange, transfer case output, or transmission tailshaft -- specifies Series 1350 to ensure correct geometry.
Assembly Notes
Install the 3502-0161U with new fasteners torqued to the vehicle or equipment manufacturer's flange bolt specification. Clean the mating pilot bore and flange face before assembly to ensure full contact. Apply anti-seize compound to flange bolt threads if operating in a corrosive environment. Inspect the yoke ears and snap-ring grooves for burrs after installation of the U-joint cross.
- Use a torque wrench -- do not impact-gun flange bolts to final torque
- Re-torque flange bolts after the first 100 miles in service
- Balance the completed shaft assembly after yoke replacement on high-speed applications
Sourcing 3502-0161U from Universal Driveshafts
Universal Driveshafts maintains inventory of Series 1350 yokes, flanges, and companion hardware for fast-turn drivetrain repairs. The 3502-0161U ships ready for assembly. Our team can cross-reference OEM part numbers and identify matching U-joint crosses, companion flanges, and shaft tube dimensions on request.
Additional information
| Partn number | 3502-0161 |
|---|---|
| Pilot dia | 0.630 |
| Bolt circle dia | 4.330 |
| Bolt hole dia | 0.500 |
| Series | 1350 |
| Brand | UDS |
| Notes | Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 12mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580″, 110mm BC = 3.750″ |
| Bolt Holes | 6 |
| Cj to flat | 3.000 |
