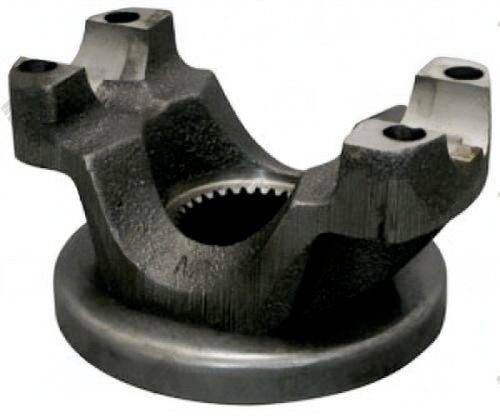

3304-30 – End Yoke – 1.328″ Splines Dia – 30 Spline – 1.739″ Hub Dia
$188.44
1 in stock
12
People watching this product now!
Description
1330 series 3304-30 end yoke. 1.328 x 30 spline | 1.739″ hub dia | 2.600″” CJ-to-end | 1.19 bore. UB retention. Direct swap for axle or T-case output.
Full Description
The 3304-30 is a 1330 series end yoke. It connects the driveshaft to the axle or transfer case output -- and it carries the u-joint at that end.
3304-30 End Yoke -- 1330 Series Spline & Fitment
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. The 3304-30 end yoke specs: 1.328 x 30 spline | 1.739" hub dia | 2.600"" CJ-to-end | 1.19 bore. Note: GM 8.875.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Spline: 1.328 x 30 -- must match axle/T-case shaft exactly
- Hub dia: 1.739" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 2.600"" -- affects driveshaft working length and angle
- Bore: 1.19 -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: GM 8.875
Specifications
- SKU: 3304-30
- Brand: UDS
- Series: 1330
- Spline Dia: 1.328
- Spline Count: 30
- Hub Dia: 1.739"
- CJ to End: 2.600""
- Through Hole: 1.19
- Style: UB
- Notes: GM 8.875
Additional information
| Cj to end |
2.600" |
|---|---|
| Hub dia |
1.739 |
| Notes |
GM 8.875 ,U BOLT PART NUMBER: 2-94-28 |
| Partn number |
3304-30 |
| Series |
1330 |
| Splines count |
30 |
| Splines dia |
1.328 |
| Style |
UB |
| Through hole |
1.19 |
