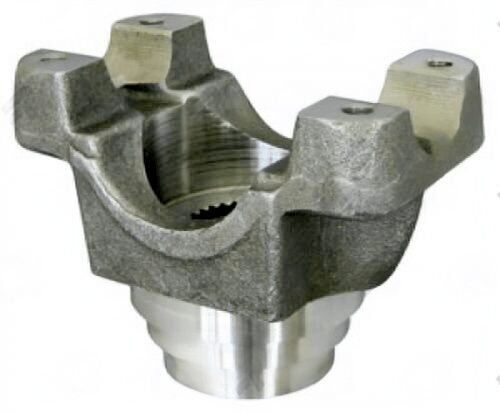

3304-291 – End Yoke – 1.276″ Splines Dia – 1.750″ Hub Dia – 1330 Series”,
$101.46
1 in stock
17 People watching this product now!
Description
1330 series 3304-291 end yoke. 1.276 x 29 spline | 1.750″” hub dia | 3.188″ CJ-to-end | 1.500″ bore. BS retention. Direct swap for axle or T-case output.
Full Description
Don't reuse a damaged end yoke. Cracked ears propagate fast under load. The 3304-291 end yoke is the new part -- correct spline, correct series, ready to install.
3304-291 End Yoke Specifications & Series
The 3304-291 end yoke -- 1.276 x 29 spline | 1.750"" hub dia | 3.188" CJ-to-end | 1.500" bore. FITS STUB: 3153-291 AND 3153-292.
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Spline: 1.276 x 29 -- must match axle/T-case shaft exactly
- Hub dia: 1.750"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.188" -- affects driveshaft working length and angle
- Bore: 1.500" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: FITS STUB: 3153-291 AND 3153-292
Specifications
- SKU: 3304-291
- Brand: UDS
- Series: 1330
- Spline Dia: 1.276
- Spline Count: 29
- Hub Dia: 1.750""
- CJ to End: 3.188"
- Through Hole: 1.500"
- Style: BS
- Notes: FITS STUB: 3153-291 AND 3153-292
Additional information
| Cj to end | 3.188 |
|---|---|
| Hub dia | 1.750" |
| Notes | FITS STUB: 3153-291 AND 3153-292 ,NUT 16-74-101 |
| Partn number | 3304-291 |
| Series | 1330 |
| Splines count | 29 |
| Splines dia | 1.276 |
| Style | BS |
| Through hole | 1.500" |
