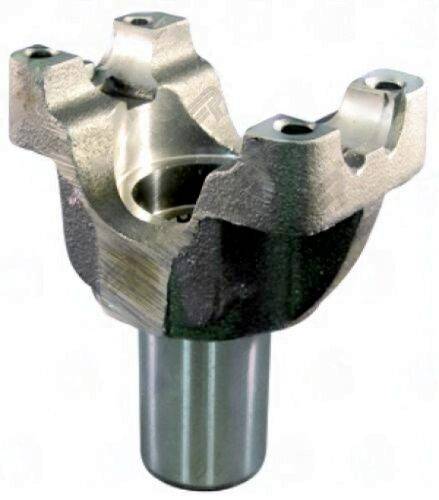

3304-281 – End Yoke – 1330F Series – 1.218″ Splines Dia – 1.500″ Hub Dia
$117.82
1 in stock
12 People watching this product now!
Description
3304-281 end yoke, 1330F series. 1.218 x 28 spline | 1.500″” hub dia | 4.750″” CJ-to-end | 2.850″ bore. Splined bore — verify count and diameter before ordering.
Full Description
Correct end yoke installation means the splines engage fully and the snap ring or nut seats solidly. The 3304-281 end yoke is machined to that exact shaft spec.
3304-281 End Yoke Specifications & Series
Specs for the 3304-281 end yoke -- 1.218 x 28 spline | 1.500"" hub dia | 4.750"" CJ-to-end | 2.850" bore. Additional: FITS: T18 - T19 - T98 MANUAL TRANSMISSION.
Spline engagement must be full depth -- a yoke that only partially engages the shaft will spin loose under load.
Key Features
- Series: 1330F -- application-specific drivetrain
- Spline: 1.218 x 28 -- must match axle/T-case shaft exactly
- Hub dia: 1.500"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.750"" -- affects driveshaft working length and angle
- Bore: 2.850" -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: FITS: T18 - T19 - T98 MANUAL TRANSMISSION
Specifications
- SKU: 3304-281
- Brand: UDS
- Series: 1330F
- Spline Dia: 1.218
- Spline Count: 28
- Hub Dia: 1.500""
- CJ to End: 4.750""
- Through Hole: 2.850"
- Style: UB
- Notes: FITS: T18 - T19 - T98 MANUAL TRANSMISSION
Additional information
| Cj to end | 4.750" |
|---|---|
| Hub dia | 1.500" |
| Notes | FITS: T18 – T19 – T98 MANUAL TRANSMISSION ,U BOLTS PART NUMBER: 2-94-58X |
| Partn number | 3304-281 |
| Series | 1330F |
| Splines count | 28 |
| Splines dia | 1.218 |
| Style | UB |
| Through hole | 2.850" |
