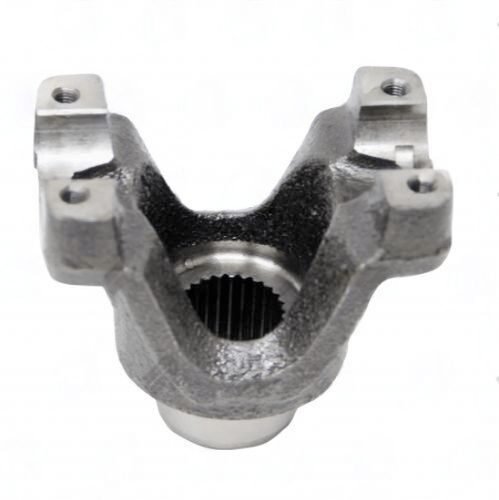

The 3304-264 is a 1330 series yoke compatible with various stub shafts, including 3153-302, 3153-252, and 3153-254. This yoke features a spline count of 26 with a spline diameter of 1.146 inches. It has a hub diameter of 1.552 inches, a through hole measurement of 1.312 inches, and a centerline-to-end distance of 3.500 inches. The design follows a ball style (BS) and is classified as light duty (LD). Notably, it includes a 6mm counterbore on the splines and has a hub length of 0.85 inches.
$91.70
| Weight | 10 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| CJ TO END | 3.543 |
| HUB DIA | 1.552 |
| Notes | FOR MIDSHIP STUB CLEARANCE LIKE 3304-263 BUT SHORTER FOR WIDER BEARING |
| Partn number | 3304-264 |
| SERIES | 1330 |
| SPLINES COUNT | 26 |
| SPLINES DIA | 1.146 |
| STYLE | BS |
| Through hole | 1.312 |
1 in stock (can be backordered)
