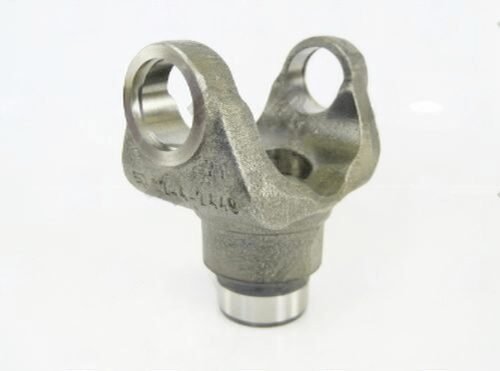

3304-262 – End Yoke – 1.146″ Splines Dia – 1.492″ Hub Dia – 26 Spline
$113.90
1 in stock
13
People watching this product now!
Description
3304-262 End Yoke — 1330 series, 1.146 x 26 spline | 1.492″ hub dia | 3.465″ CJ-to-end | 1.973 bore. Professional replacement, spline-specific fit. Count splines before ordering.
Full Description
The 3304-262 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 3304-262 end yoke is machined to one specific spline specification for 1330 series applications.
3304-262 End Yoke — Spline Specs & 1330 Series Fitment
The 1330 series covers light-to-medium duty trucks and GM half-ton platforms. The 3304-262 end yoke specs: 1.146 x 26 spline | 1.492" hub dia | 3.465" CJ-to-end | 1.973 bore. TOYOTA - END YOKE TO MIDSHIP - SNAP RING STYLE. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface.
Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3304-262 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.
Key Features
- Series: 1330 — light-to-medium duty trucks and GM half-ton platforms
- Spline: 1.146 x 26 — must match output shaft exactly
- Hub dia: 1.492" — outer dimension, verify clearance
- CJ-to-end: 3.465" — positions u-joint relative to axle flange
- Bore: 1.973
- Style: SR
- Brand: UDS
- Note: TOYOTA - END YOKE TO MIDSHIP - SNAP RING STYLE
Specifications
- SKU: 3304-262
- Brand: UDS
- Series: 1330
- Spline Dia: 1.146
- Spline Count: 26
- Hub Dia: 1.492"
- CJ to End: 3.465"
- Through Hole: 1.973
- Style: SR
- Notes: TOYOTA - END YOKE TO MIDSHIP - SNAP RING STYLE
Additional information
| Cj to end | 3.465 |
|---|---|
| Hub dia | 1.492 |
| Notes | TOYOTA – END YOKE TO MIDSHIP – SNAP RING STYLE |
| Partn number | 3304-262 |
| Series | 1330 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Style | SR |
| Through hole | 1.973 |
