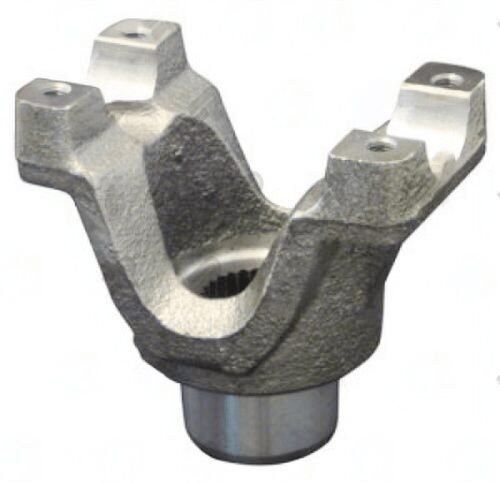

3304-261 – End Yoke – 1.146″ Splines Dia – 1.552″ Hub Dia – 26 Spline
$101.40
1 in stock
10 People watching this product now!
Description
3304-261 end yoke, 1330 series. 1.146 x 26 spline | 1.552″ hub dia | 3.750″” CJ-to-end | 1.500″ bore. Splined bore — verify count and diameter before ordering.
Full Description
The 3304-261 end yoke mates with the axle output shaft via splined bore -- pull the old one, verify the spline count and series, press the new one on.
3304-261 End Yoke Specifications & Series
The 3304-261 end yoke -- 1.146 x 26 spline | 1.552" hub dia | 3.750"" CJ-to-end | 1.500" bore. DANA 44 - RUBICON 03 TO 06.
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Spline: 1.146 x 26 -- must match axle/T-case shaft exactly
- Hub dia: 1.552" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.750"" -- affects driveshaft working length and angle
- Bore: 1.500" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: DANA 44 - RUBICON 03 TO 06
Specifications
- SKU: 3304-261
- Brand: UDS
- Series: 1330
- Spline Dia: 1.146
- Spline Count: 26
- Hub Dia: 1.552"
- CJ to End: 3.750""
- Through Hole: 1.500"
- Style: BS
- Notes: DANA 44 - RUBICON 03 TO 06
Additional information
| Cj to end | 3.750" |
|---|---|
| Hub dia | 1.552 |
| Notes | DANA 44 – RUBICON 03 TO 06 ,SAME AS 2-4-7791-1 PROPRIETARY TO CHRYSLER ,STRAP: 2-70-18 |
| Partn number | 3304-261 |
| Series | 1330 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Style | BS |
| Through hole | 1.500" |
