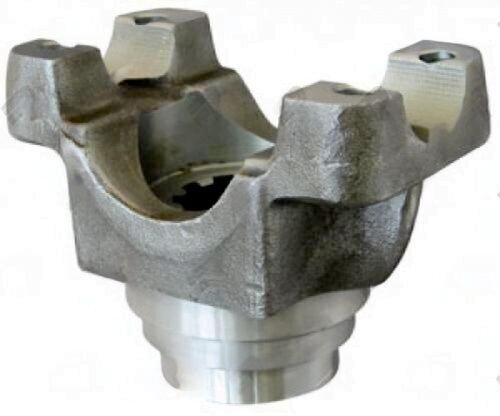

3304-10 End Yoke 1310 Series , 1.375 X 10 splines , HUB 1.750 , Same as 2-4-4071
$125.27
2 in stock
12 People watching this product now!
Description
1330 series 3304-10 end yoke. 1.375 x 10 spline | 1.750″” hub dia | 3.188″ CJ-to-end | 1.750″ bore. UB retention. Direct swap for axle or T-case output.
Full Description
Spline count and diameter aren't suggestions -- they're the spec. The 3304-10 end yoke is bored and splined to one shaft dimension. Match it exactly.
3304-10 End Yoke -- 1330 Series Spline & Fitment
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. The 3304-10 end yoke specs: 1.375 x 10 spline | 1.750"" hub dia | 3.188" CJ-to-end | 1.750" bore. Note: same as the discontinued Spicer number 2-4-4071 and takes u-bolt kit number 2-94-28X..
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Spline: 1.375 x 10 -- must match axle/T-case shaft exactly
- Hub dia: 1.750"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.188" -- affects driveshaft working length and angle
- Bore: 1.750" -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: same as the discontinued Spicer number 2-4-4071 and takes u-bolt kit number 2-94-28X.
Specifications
- SKU: 3304-10
- Brand: UDS
- Series: 1330
- Spline Dia: 1.375
- Spline Count: 10
- Hub Dia: 1.750""
- CJ to End: 3.188"
- Through Hole: 1.750"
- Style: UB
- Notes: same as the discontinued Spicer number 2-4-4071 and takes u-bolt kit number 2-94-28X.
Additional information
| Cj to end | 3.188 |
|---|---|
| Hub dia | 1.750" |
| Notes | same as the discontinued Spicer number 2-4-4071 and takes u-bolt kit number 2-94-28X. |
| Partn number | 3304-10 |
| Series | 1330 |
| Splines count | 10 |
| Splines dia | 1.375 |
| Style | UB |
| Through hole | 1.750" |
