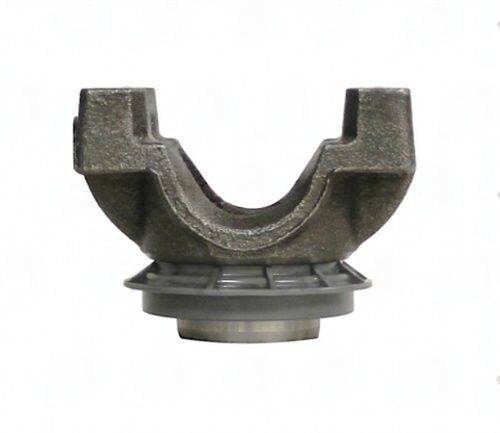

3304-05 – End Yoke – 1330F Series – 1.312″ Splines dia – 1.812″ Hub Dia
$97.48
1 in stock
16 People watching this product now!
Description
1330F series 3304-05 end yoke. 1.312 x 30 spline | 1.812″ hub dia | 3.145″ CJ-to-end | 1.275 bore. UB retention. Direct swap for axle or T-case output.
Full Description
A sloppy end yoke causes driveline clunk and accelerated u-joint wear. The 3304-05 end yoke is the direct replacement -- correct spline count, correct series.
3304-05 End Yoke Specifications & Series
The 3304-05 end yoke -- 1.312 x 30 spline | 1.812" hub dia | 3.145" CJ-to-end | 1.275 bore. FORD 8.8.
Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1330F -- application-specific drivetrain
- Spline: 1.312 x 30 -- must match axle/T-case shaft exactly
- Hub dia: 1.812" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.145" -- affects driveshaft working length and angle
- Bore: 1.275 -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: FORD 8.8
Specifications
- SKU: 3304-05
- Brand: UDS
- Series: 1330F
- Spline Dia: 1.312
- Spline Count: 30
- Hub Dia: 1.812"
- CJ to End: 3.145"
- Through Hole: 1.275
- Style: UB
- Notes: FORD 8.8
Additional information
| Cj to end | 3.145 |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 8.8 ,U BOLT PART NUMBER: 2-94-58X |
| Partn number | 3304-05 |
| Series | 1330F |
| Splines count | 30 |
| Splines dia | 1.312 |
| Style | UB |
| Through hole | 1.275 |
