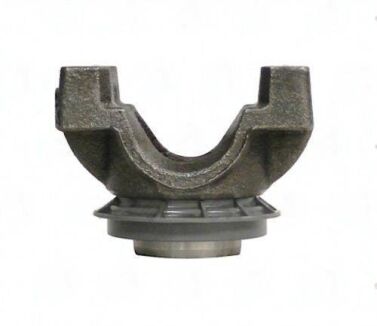

3304-05 – End Yoke – 1330F Series – 1.312″ Splines dia – 1.812″ Hub Dia
$97.48
1 in stock
19 People watching this product now!
Description
3304-05 End Yoke — 1330F series, 1.312 x 30 spline | 1.812″ hub dia | 3.145″ CJ-to-end | 1.275 bore. Proven replacement, spline-specific fit. Count splines before ordering.
Full Description

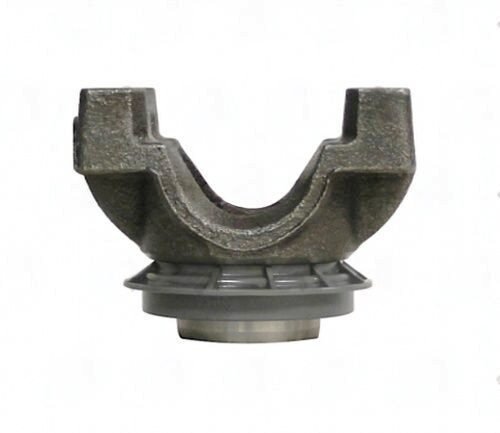

The 3304-05 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 3304-05 end yoke is machined to one specific spline specification for 1330F series applications.

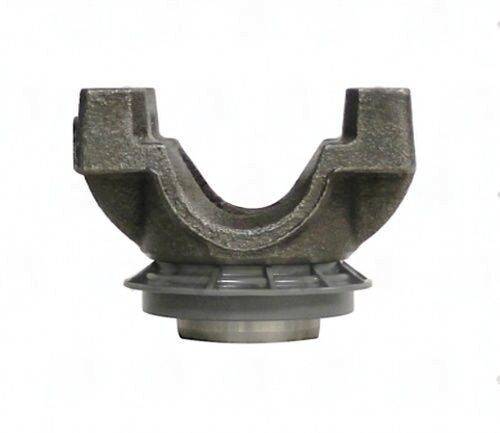

3304-05 End Yoke — Spline Specs & 1330F Series Fitment
The 3304-05 end yoke specs: 1.312 x 30 spline | 1.812" hub dia | 3.145" CJ-to-end | 1.275 bore. FORD 8.8. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface.
Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3304-05 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.
Key Features
- Series: 1330F — application-specific
- Spline: 1.312 x 30 — must match output shaft exactly
- Hub dia: 1.812" — outer dimension, verify clearance
- CJ-to-end: 3.145" — positions u-joint relative to axle flange
- Bore: 1.275
- Style: UB
- Brand: UDS
- Note: FORD 8.8
Specifications
- SKU: 3304-05
- Brand: UDS
- Series: 1330F
- Spline Dia: 1.312
- Spline Count: 30
- Hub Dia: 1.812"
- CJ to End: 3.145"
- Through Hole: 1.275
- Style: UB
- Notes: FORD 8.8
Additional information
| Cj to end | 3.145 |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 8.8 ,U BOLT PART NUMBER: 2-94-58X |
| Partn number | 3304-05 |
| Series | 1330F |
| Splines count | 30 |
| Splines dia | 1.312 |
| Style | UB |
| Through hole | 1.275 |
