3180-32 – 32 – Center Support Bearing – Range Rover (06 12) Application – 1.181″ ID
$70.52
2 in stock
Description

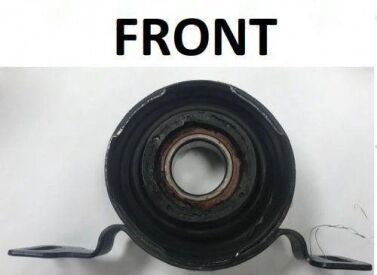

Range Rover 2006-2012 (L322) center support bearing with 1.181″ bore; rubber-isolated assembly for the L322 two-piece propshaft mid-span center hanger position.
Full Description
Q: Does the 3180-32 fit all Range Rover L322 models from 2006--2012? A: The 3180-32 covers Range Rover L322 applications from 2006--2012 with the 30 mm (1.181") propshaft stub shaft bore. Confirm via VIN -- some L322 variants with different engine or transmission configurations may use a different center bearing specification.
Q: Range Rover L322 propshaft center support bearing -- how do I access this on the L322? A: The L322 center bearing hanger bracket is accessed from under the vehicle after dropping the full propshaft assembly. The front and rear propshaft sections must be separated at the center joint before the bearing can be pressed off the stub shaft. Land Rover recommends a propshaft removal tool (Land Rover part 303-397) but a standard three-jaw puller is adequate for the removal step.
Q: What is the OEM Land Rover part number for the 3180-32? A: Land Rover OEM references for the L322 Range Rover center bearing include TVB000060 and TVB000090 depending on drivetrain configuration and production year. Confirm via Land Rover ECAT parts catalog using your VIN.
Q: Range Rover L322 propshaft center support bearing -- how do I access this on the L322? A: The L322 center bearing hanger bracket is accessed from under the vehicle after dropping the full propshaft assembly. The front and rear propshaft sections must be separated at the center joint before the bearing can be pressed off the stub shaft. Land Rover recommends a propshaft removal tool (Land Rover part 303-397) but a standard three-jaw puller is adequate for the removal step.
Q: What is the OEM Land Rover part number for the 3180-32? A: Land Rover OEM references for the L322 Range Rover center bearing include TVB000060 and TVB000090 depending on drivetrain configuration and production year. Confirm via Land Rover ECAT parts catalog using your VIN.
Additional information
| Application | Range Rover (06-12) |
|---|---|
| Bearing id | 1.181 |
| Ctr to ctr of mount holes | 6.300 |
| Partn number | 3180-32 |
| Center bearing to base |
