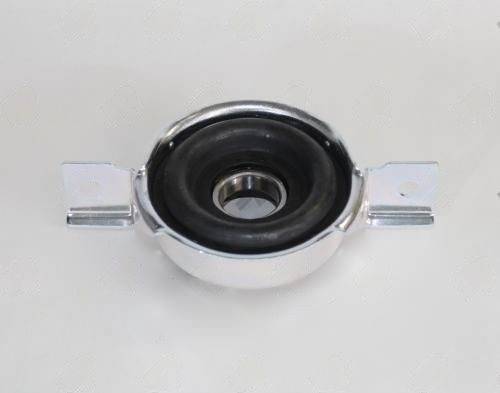

3180-27 – Center Support Bearing – Chrysler Application – 1.181″ ID – 500″ Center Bearing To Base
$95.10
2 in stock
Description
Chrysler application center support bearing with 1.181″ bore and 0.500″ center-to-base height; compact rubber-isolated assembly for Chrysler two-piece driveshaft flush hanger positions.
Full Description
3180-27 -- Chrysler Center Support Bearing, 30 mm Bore, 0.500" Height
The 3180-27 serves Chrysler applications where the tunnel crossmember positions the mounting bracket just 0.500" above the driveshaft centerline. This compact dimension is found on Chrysler passenger car platforms with flush-mounted propshaft hangers -- a geometry distinct from the larger drop brackets used on Chrysler trucks and SUVs.
At only 0.500" center-to-base height, the rubber isolator volume is limited. Chrysler compensates with a firm compound that maintains adequate isolation within the smaller isolator cross-section. A key identification note: the 3180-27 at 0.500" and the 3180-31 (7.375" hole spacing bracket) are both Chrysler applications -- they are not interchangeable. The 0.500" height unit uses slot-type mounting, while the 3180-31 uses discrete holes. Identify the crossmember bracket type before ordering. Chrysler OEM cross-references in the 52105945AA and related series; confirm via VIN for the center support bearing.
Additional information
| Application | CHRYSLER |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 500 |
| Ctr to ctr of mount holes | 6.375 |
| Notes | Jeep Grand Cherokee 2012+ |
| Partn number | 3180-27 |
