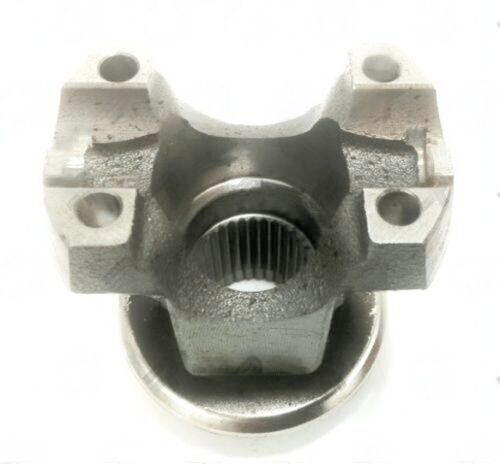

3104-321CV End Yoke CV Conversion To 1310 Jeep JK NP241 07-18, counterbore by nut for spline rubber seal
$45.01
+50 in stock
11 People watching this product now!
Description
3104-321CV end yoke, 1310 series. 1.401 x 32 spline | 1.943″ hub dia | 3.875″ CJ-to-end | 2.000″ bore. Splined bore — verify count and diameter before ordering.
Full Description
The 3104-321CV is a 1310 series end yoke. It connects the driveshaft to the axle or transfer case output -- and it carries the u-joint at that end.
3104-321CV End Yoke -- 1310 Series Spline & Fitment
The 1310 series is the standard for light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500.
Dimensions on the 3104-321CV end yoke: 1.401 x 32 spline | 1.943" hub dia | 3.875" CJ-to-end | 2.000" bore. CONVERSION YOKE FOR JEEP JK 07 AND UP - FITS FOR FRONT & REAR INCLUDES HUB SLEEVE. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1310 -- light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 1.401 x 32 -- must match axle/T-case shaft exactly
- Hub dia: 1.943" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.875" -- affects driveshaft working length and angle
- Bore: 2.000" -- confirm against shaft OD
- Retention: CV -- verify against your yoke configuration
- Note: CONVERSION YOKE FOR JEEP JK 07 AND UP - FITS FOR FRONT & REAR INCLUDES HUB SLEEVE
Specifications
- SKU: 3104-321CV
- Brand: UDS
- Series: 1310
- Spline Dia: 1.401
- Spline Count: 32
- Hub Dia: 1.943"
- CJ to End: 3.875"
- Through Hole: 2.000"
- Style: CV
- Notes: CONVERSION YOKE FOR JEEP JK 07 AND UP - FITS FOR FRONT & REAR INCLUDES HUB SLEEVE
Additional information
| Cj to end | 3.875 |
|---|---|
| Hub dia | 1.943 |
| Notes | CONVERSION YOKE FOR JEEP JK 07 AND UP – FITS FOR FRONT & REAR INCLUDES HUB SLEEVE |
| Partn number | 3104-321CV |
| Series | 1310 |
| Splines count | 32 |
| Splines dia | 1.401 |
| Style | CV |
| Through hole | 2.000" |
