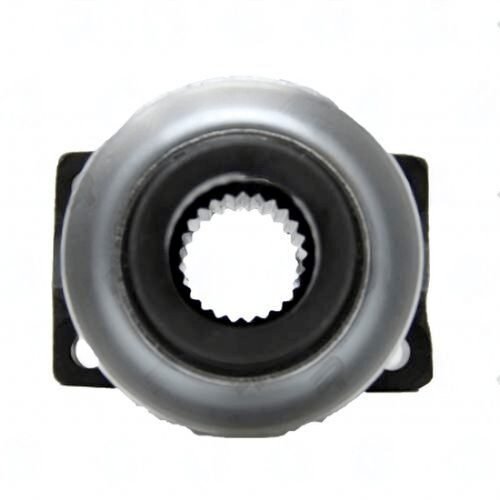

3104-252 – End Yoke – 25 Splines – 1.0978″ Splines Dia – 1.812″ Hub Dia
$102.22
0 in stock
10
People watching this product now!
Description
3104-252 End Yoke — 1310F series, 1.0978 x 25 spline | 1.812″ hub dia | 4.375″ CJ-to-end | 2.625 bore. Premium replacement, spline-specific fit. Count splines before ordering.
Full Description
The 3104-252 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 3104-252 end yoke is machined to one specific spline specification for 1310F series applications.
3104-252 End Yoke — Spline Specs & 1310F Series Fitment
The 3104-252 end yoke specs: 1.0978 x 25 spline | 1.812" hub dia | 4.375" CJ-to-end | 2.625 bore. FORD 8 - U BOLT TYPE. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3104-252 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1310F — application-specific
- Spline: 1.0978 x 25 — must match output shaft exactly
- Hub dia: 1.812" — outer dimension, verify clearance
- CJ-to-end: 4.375" — positions u-joint relative to axle flange
- Bore: 2.625
- Style: UB
- Brand: UDS
- Note: FORD 8 - U BOLT TYPE
Specifications
- SKU: 3104-252
- Brand: UDS
- Series: 1310F
- Spline Dia: 1.0978
- Spline Count: 25
- Hub Dia: 1.812"
- CJ to End: 4.375"
- Through Hole: 2.625
- Style: UB
- Notes: FORD 8 - U BOLT TYPE
Additional information
| Cj to end | 4.375 |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 8 – U BOLT TYPE |
| Partn number | 3104-252 |
| Series | 1310F |
| Splines count | 25 |
| Splines dia | 1.0978 |
| Style | UB |
| Through hole | 2.625 |
