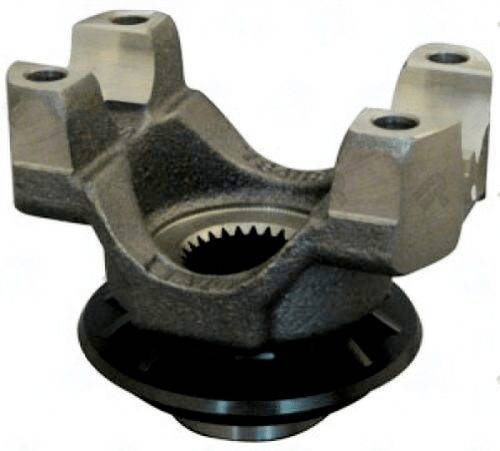

3104-05 – End Yoke – 1.188″ Splines Dia – 1310 Series – 1.521″ Hub Dia
$89.28
3 in stock
18 People watching this product now!
Description
End yoke 3104-05, 1310. Specs: 1.188 x 27 spline | 1.521″ hub dia | 3.185″ CJ-to-end | 1.475 bore. GM 7.25. Spline count and series must match.
Full Description
End yoke selection depends on series, spline count, shaft diameter, and retention style. The 3104-05 covers all four -- confirm yours match.
3104-05 End Yoke -- 1310 Series Spline & Fitment
The 1310 series is the standard for light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 3104-05 end yoke specs: 1.188 x 27 spline | 1.521" hub dia | 3.185" CJ-to-end | 1.475 bore. Note: GM 7.25.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1310 -- light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 1.188 x 27 -- must match axle/T-case shaft exactly
- Hub dia: 1.521" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.185" -- affects driveshaft working length and angle
- Bore: 1.475 -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: GM 7.25
Specifications
- SKU: 3104-05
- Brand: UDS
- Series: 1310
- Spline Dia: 1.188
- Spline Count: 27
- Hub Dia: 1.521"
- CJ to End: 3.185"
- Through Hole: 1.475
- Style: BS
- Notes: GM 7.25
Additional information
| Cj to end | 3.185 |
|---|---|
| Hub dia | 1.521 |
| Notes | GM 7.25 ,STRAP PART NUMBER: 2-70-18 |
| Partn number | 3104-05 |
| Series | 1310 |
| Splines count | 27 |
| Splines dia | 1.188 |
| Style | BS |
| Through hole | 1.475 |
