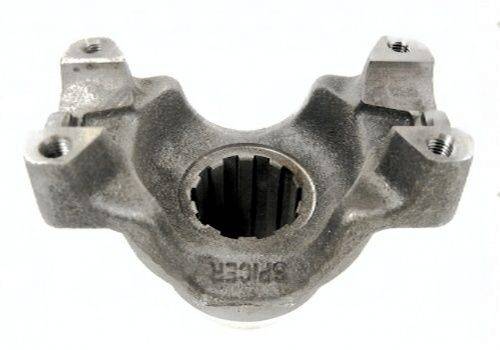

3-4-2941-1 End Yoke 1410, Splines 1.500 x 10, Hub Dia: 2.313, Center U joint To End: 3.688
$40.38
9 in stock
16 People watching this product now!
Description
1410 series 3-4-2941-1 end yoke. 1.500″ x 10 spline | 2.313″ hub dia | 3.688″” CJ-to-end | 2.000″ bore. BS retention. Direct swap for axle or T-case output.
Full Description
The 3-4-2941-1 end yoke mates with the axle output shaft via splined bore -- pull the old one, verify the spline count and series, press the new one on.
3-4-2941-1 End Yoke -- 1410 Series Spline & Fitment
The 1410 series is the standard for HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 3-4-2941-1 end yoke specs: 1.500" x 10 spline | 2.313" hub dia | 3.688"" CJ-to-end | 2.000" bore.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1410 -- HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 1.500" x 10 -- must match axle/T-case shaft exactly
- Hub dia: 2.313" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.688"" -- affects driveshaft working length and angle
- Bore: 2.000" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Spicer OEM-spec -- forged construction, factory-match tolerances
Specifications
- SKU: 3-4-2941-1
- Brand: SPICER
- Series: 1410
- Spline Dia: 1.500"
- Spline Count: 10
- Hub Dia: 2.313"
- CJ to End: 3.688""
- Through Hole: 2.000"
- Style: BS
Additional information
| Cj to end | 3.688" |
|---|---|
| Hub dia | 2.313 |
| Partn number | 3-4-2941-1 |
| Series | 1410 |
| Splines count | 10 |
| Splines dia | 1.500" |
| Style | BS |
| Through hole | 2.000" |
| Brand | SPICER |
