2880-80 – Center Support Bearing – MERCEDES – 985 – 750 – 4.300
$69.62
3 in stock
13 People watching this product now!
Description

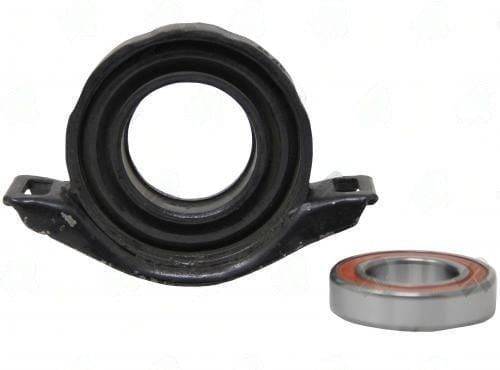

2880-80 Mercedes center support bearing — housing and rubber only. 0.985″ ID, 1.847″ OD. Center-to-base: 0.750″. Spacing: 4.300″. 6005LLU sold separately.
Full Description
Like the 2880-90, the 2880-80 is a housing-and-rubber-only center bearing assembly for Mercedes-Benz driveshafts. The internal 6005LLU ball bearing (0.985" ID x 1.847" OD) must be ordered separately. The primary difference between this unit and the 2880-90 is the mount hole spacing: 4.300" here versus 4.625" on the 2880-90.
The center-to-base dimension of 0.750" places the bearing centerline relatively close to the mounting bracket base surface. This low profile suits Mercedes models where the driveshaft tunnel clearance is tight and the bearing must mount close to the chassis surface.
| Specification | Value |
|---|---|
| Part Number | 2880-80 |
| Application | Mercedes-Benz |
| Component | Housing + Rubber Only |
| Bearing | 6005LLU (sold separately) |
| Bearing ID | 0.985" |
| Bearing OD | 1.847" |
| Center-to-Base | 0.750" |
| Mount Hole Spacing | 4.300" |
Identifying your correct Mercedes bearing variant requires measuring two dimensions: center-to-base height and mount hole spacing. The 2880-80 (0.750" height, 4.300" spacing) is distinct from 2880-90 (zero-offset, 4.625" spacing) and 2880-11 (0.625" height, 4.875" spacing). Do not interchange these between variants.
View all center support bearings.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 985 |
| Center bearing to base | 750 |
| Ctr to ctr of mount holes | 4.300 |
| Notes | Housing and Rubber only . 6005LLU Sold Separately ..Bearing ID .985″ – OD 1.847″ |
| Partn number | 2880-80 |
