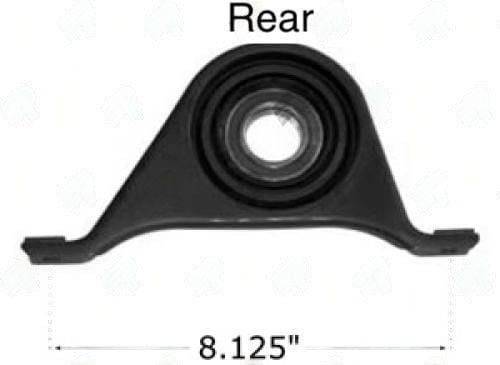

2880-70 – Center Support Bearing – Mercedes Application – 1.181″ ID – 2.500″ Center Bearing To Base
$90.48
1 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 2.500″ center-to-base height; rubber-isolated assembly for Mercedes two-piece propshaft mid-span hanger.
Full Description
| SKU | 2880-70 |
|---|---|
| Application | Mercedes-Benz (confirm via chassis code) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 2.500" |
| Type | Rubber-isolated center support bearing |
- 2.500" center-to-base -- Mercedes uses this height on model variants where the propshaft routes below a higher crossmember position
- 30 mm bore -- confirm the stub shaft OD is within Mercedes tolerance (typically H7/r6 interference) before installation
- Mercedes rubber isolator compounds are formulated to match specific propshaft resonance frequencies; off-brand isolators may not provide equivalent isolation
- Mercedes-Benz OEM references in the A 202 410 series; exact number depends on model and production year
Warning: Mercedes-Benz uses a specific snap ring at the inner race on many propshaft configurations. If the snap ring groove is worn or the snap ring was lost during removal, the replacement bearing will migrate axially. Inspect the stub shaft snap ring groove condition before pressing the new 2880-70, and use a new snap ring if the original is distorted or worn.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.500 |
| Ctr to ctr of mount holes | 8.125 |
| Notes | Housing and rubber only. 6006LLU Bearing sold separately, 4.55mm #3 shim |
| Partn number | 2880-70 |
