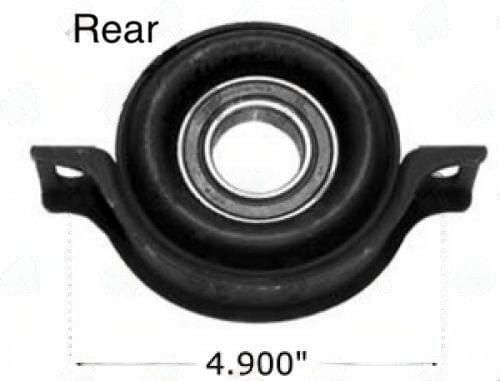

2880-65 – Center Support Bearing – Mercedes Application – 1.181″ ID – 4.900″ Ctr To Ctr Of Mount Hole
$256.09
1 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 4.900″ mounting hole center-to-center span; rubber-isolated assembly for Mercedes two-piece propshaft hanger.
Full Description
2880-65 -- Mercedes-Benz Center Support Bearing, 4.900" Bolt Pattern
The 2880-65 uses a 4.900" center-to-center mounting hole spacing -- 0.050" less than the 4.950" dimension used by the 2880-75. On Mercedes platforms, this 1.27 mm difference in bolt pattern reflects a design change between model years or model series. Ordering the wrong bolt-pattern unit results in an approximately 0.6 mm offset per bolt hole -- enough to cause the bracket to seat with a twist, pre-loading the rubber isolator before the propshaft is even connected.
When servicing a Mercedes-Benz center support bearing with a fixed-hole bracket design, always measure both mounting holes on the crossmember. Corrosion can elongate hole edges, making measurements unreliable; clean the hole edges with a rat-tail file before measuring. Mercedes OEM part numbers in the A 202 410 series apply; confirm via Mercedes STAR ETK by model series and production date.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 4.900 |
| Notes | Housing and rubber only. 6006LLU Bearing sold separately. #2 stamped into bracket |
| Partn number | 2880-65 |
