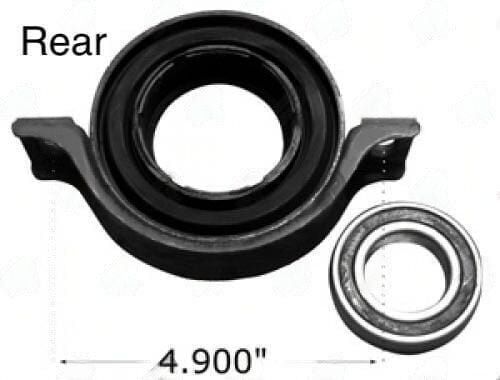

2880-60 – Center Support Bearing – Mercedes Application – 1.181″ ID – 40″ Center Bearing To Base
$70.77
Out of stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 0.40″ center-to-base height; ultra-low rubber-isolated assembly for minimal-drop Mercedes propshaft hanger brackets.
Full Description
| SKU | 2880-60 |
|---|---|
| Application | Mercedes-Benz (confirm via chassis code) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 0.40" |
| Type | Rubber-isolated center support bearing |
- 0.40" center-to-base height -- exceptionally compact; the bracket base and bearing centerline are nearly coincident
- Used on Mercedes passenger car platforms where the propshaft tunnel is tightly packaged against the floor crossmember
- 30 mm bore: verify the stub shaft OD is within Mercedes specification before pressing
- Use a low-profile torque wrench or crowfoot fitting to access the bracket fasteners at this minimal height
Warning: at 0.40" height, any dirt or debris on the crossmember mounting surface will tilt the bracket, changing the bearing centerline position relative to the propshaft axis. Clean the mounting surface with a wire brush and solvent before installing the 2880-60, and confirm the bracket seats flush on the crossmember face without rocking before final torquing.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 40 |
| Ctr to ctr of mount holes | 4.900 |
| Notes | #3 on pad |
| Partn number | 2880-60 |
