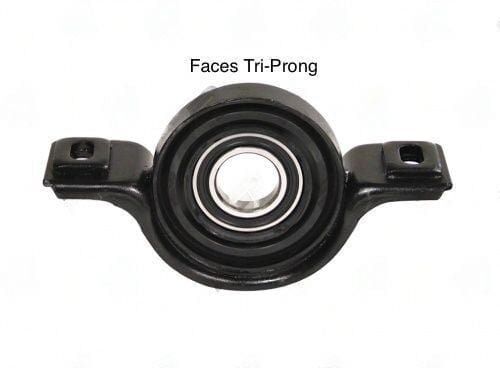

2880-43 – Center Support Bearing – Mercedes Application – 1.181″ ID – 375″ Center Bearing To Base
$97.95
10 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 0.375″ center-to-base height; ultra-minimal rubber-isolated assembly for nearly flush-mount Mercedes propshaft brackets.
Full Description
2880-43 Specifications
Application: Mercedes-Benz | Bore ID: 1.181" (30 mm) | Center to Base: 0.375" | Type: Rubber-isolated center support bearing
The 2880-43 is an extremely low-profile Mercedes center bearing at 0.375" center-to-base -- the mounting base is only 9.5 mm from the bearing centerline. This dimension appears on Mercedes compact car platforms (A-Class, CLA, B-Class) where the propshaft tunnel offers minimal vertical clearance between the propshaft and the crossmember.
One engineering challenge at this height: after torquing the bracket fasteners, the available wrench swing is severely limited by the bearing housing above. Use a 1/4-inch drive torque wrench with a universal joint to reach the fasteners without contacting the bearing outer ring. Overtorquing by using a breaker bar with no torque feedback will crush the thin bracket flange at this height. Mercedes OEM references for compact car propshaft center bearings are in the A 169 and A 245 series depending on model; confirm via STAR ETK by VIN.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 375 |
| Ctr to ctr of mount holes | 6.250 |
| Notes | 5.00mm mounting tab thickness |
| Partn number | 2880-43 |
