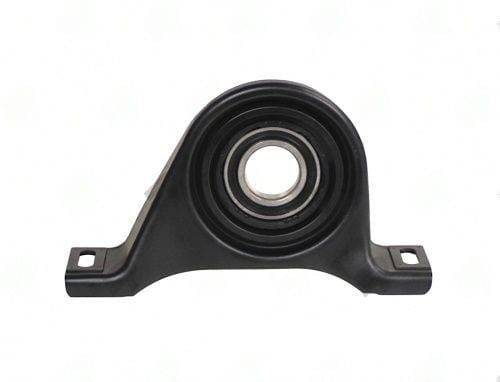

2880-27 – Center Support Bearing – Mercedes Application – 1.181″ ID – 2.188″ Center Bearing To Base

The 2880-27 uses a 2.188" center-to-base height -- a Mercedes-specific dimension falling between the 2.000" and 2.250" standard heights. As with many Mercedes center bearing specifications, this non-standard value requires precise measurement of the removed unit before ordering; rounding to 2.000" or 2.250" selects the wrong part and introduces a propshaft angle error.

• Bore ID: 1.181" (30 mm) -- verify the stub shaft OD with a digital micrometer
• Center to base: 2.188" -- measure the removed bearing with digital calipers to confirm; the 2.188" dimension is 3.5 mm above 2.000" and 1.6 mm below 2.250"
• Rubber isolator: Mercedes application compound; do not substitute a generic isolator
• The center support bearing must seat fully on the crossmember bracket face -- check for flatness before torquing

Tip: write down the OEM Mercedes part number from the removed bearing before it leaves the workshop. Once the old bearing is in the waste bin, the only way to reconfirm the part is via a VIN lookup in the STAR ETK catalog -- a process that requires dealer access. Photographing the OEM number on the removed bearing takes 10 seconds and prevents ordering errors.
