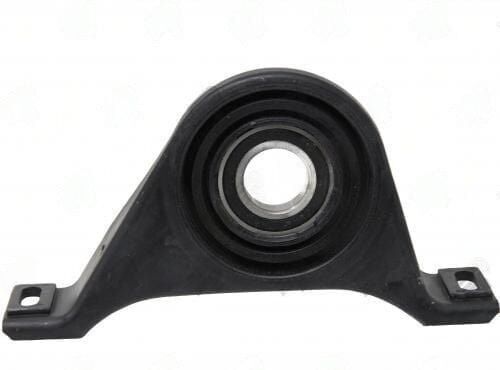

2880-26 – Center Support Bearing – Mercedes Application – 1.181″ ID – 2.500″ Center Bearing To Base
$217.91
1 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 2.500″ center-to-base height; rubber-isolated assembly for Mercedes two-piece propshaft standard tall hanger positions.
Full Description
Q: My Mercedes E-Class W213 shows 2.500" on the removed center bearing. Is 2880-26 correct? A: The 2880-26 covers Mercedes-Benz applications with 1.181" (30 mm) bore and 2.500" center-to-base height. However, 2880-70 also uses this bore and height. Confirm the correct SKU via the Mercedes OEM part number on the removed bracket. For the W213 platform, part numbers are in the A 213 series -- confirm via STAR ETK by VIN.
Q: Both 2880-26 and 2880-70 have the same 1.181" bore and 2.500" height. How do I choose? A: These two SKUs differ in bracket arm geometry -- mounting slot position, arm angle, or isolator profile -- for different Mercedes model series. The 2880-26 is in the lower-numbered (typically older) production series; 2880-70 in the higher. The OEM part number from the removed center support bearing is the definitive differentiator.
Q: What can cause repeated center bearing failures on a high-mileage Mercedes E-Class? A: Recurring failure on a high-mileage Mercedes usually indicates one of: (1) deteriorated flex disc (guibo) transmitting shock loads to the center bearing; (2) rear engine mount collapse changing the propshaft angle; or (3) worn output shaft seals causing lubricant contamination of the rubber isolator. Replace the flex disc concurrently and inspect all propshaft-adjacent mounts.
Q: Both 2880-26 and 2880-70 have the same 1.181" bore and 2.500" height. How do I choose? A: These two SKUs differ in bracket arm geometry -- mounting slot position, arm angle, or isolator profile -- for different Mercedes model series. The 2880-26 is in the lower-numbered (typically older) production series; 2880-70 in the higher. The OEM part number from the removed center support bearing is the definitive differentiator.
Q: What can cause repeated center bearing failures on a high-mileage Mercedes E-Class? A: Recurring failure on a high-mileage Mercedes usually indicates one of: (1) deteriorated flex disc (guibo) transmitting shock loads to the center bearing; (2) rear engine mount collapse changing the propshaft angle; or (3) worn output shaft seals causing lubricant contamination of the rubber isolator. Replace the flex disc concurrently and inspect all propshaft-adjacent mounts.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.500 |
| Ctr to ctr of mount holes | 8.188 |
| Notes | MBZ #6 Pad, bearing included in box. |
| Partn number | 2880-26 |
