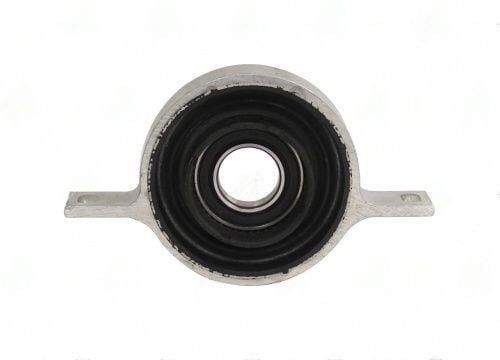

2780-61 – Center Support Bearing – Bmw Application – 1.378″ ID – 500″ Center Bearing To Base
$80.74
1 in stock
Description
BMW application center support bearing with 1.378″ bore and 0.500″ center-to-base height; ultra-compact rubber-isolated assembly for minimal-drop BMW propshaft hanger brackets.
Full Description
| SKU | 2780-61 |
|---|---|
| Application | BMW (confirm via chassis code) |
| Bore ID | 1.378" (35 mm) |
| Center to Base | 0.500" |
| Type | Rubber-isolated center support bearing |
- 0.500" center-to-base height is exceptionally compact -- this is one of the lowest-profile center bearing assemblies in the BMW application range
- Used where the propshaft tunnel positions the crossmember nearly flush with the propshaft centerline
- Bore ID 1.378" (35 mm) -- verify stub shaft OD with a micrometer before ordering
- Do not substitute a 1.325" or 1.625" height unit -- even a 0.125" error changes the propshaft operating angle measurably on BMW platforms
Warning: the 0.500" height means the mounting flange is very close to the bearing outer race. When torquing the bracket fasteners, use a torque wrench with a thin-wall socket -- standard sockets may contact the bearing outer housing and distort the rubber isolator seat. BMW OEM part numbers in the 26 12 7 500 series may apply; confirm via VIN.
Additional information
| Application | BMW |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 500 |
| Ctr to ctr of mount holes | 6.300 |
| Partn number | 2780-61 |
